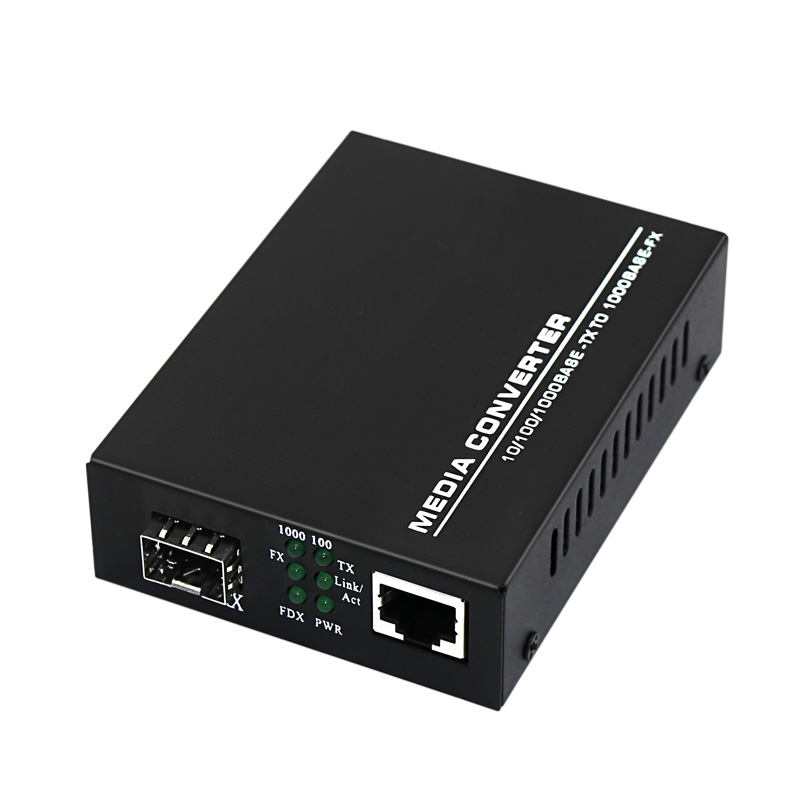

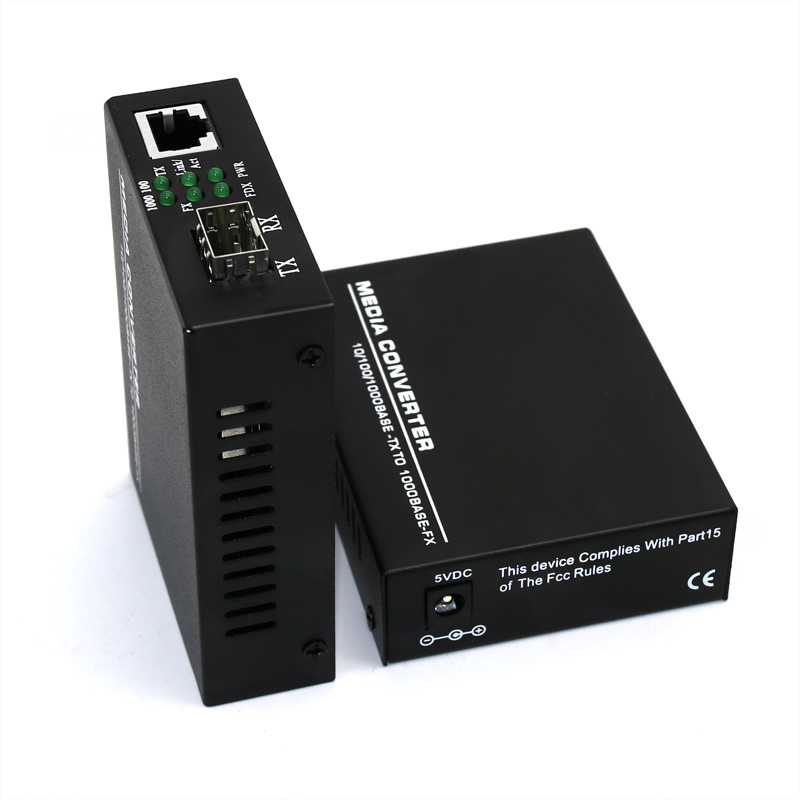

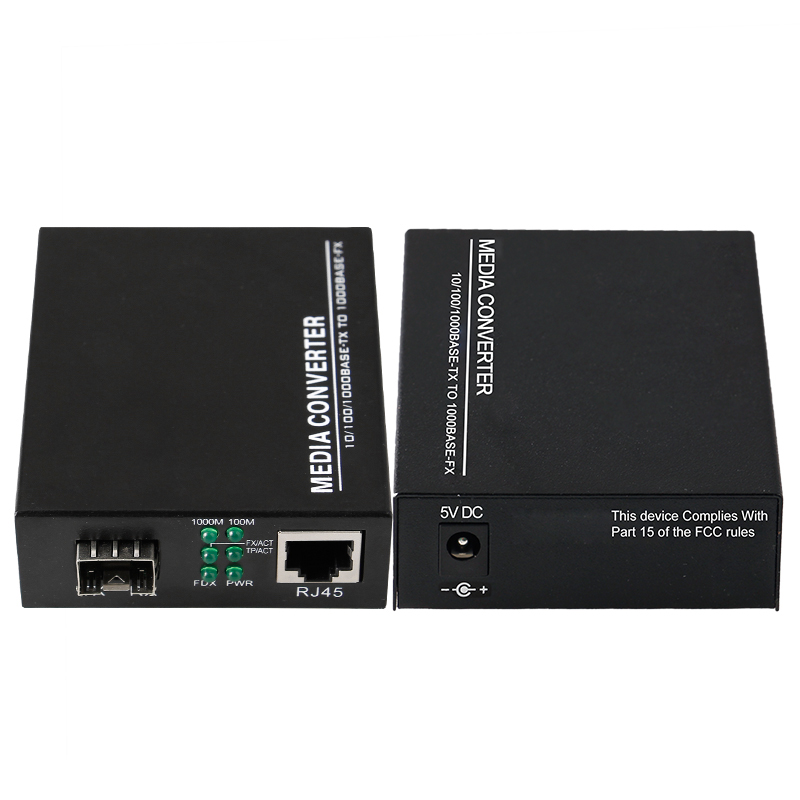

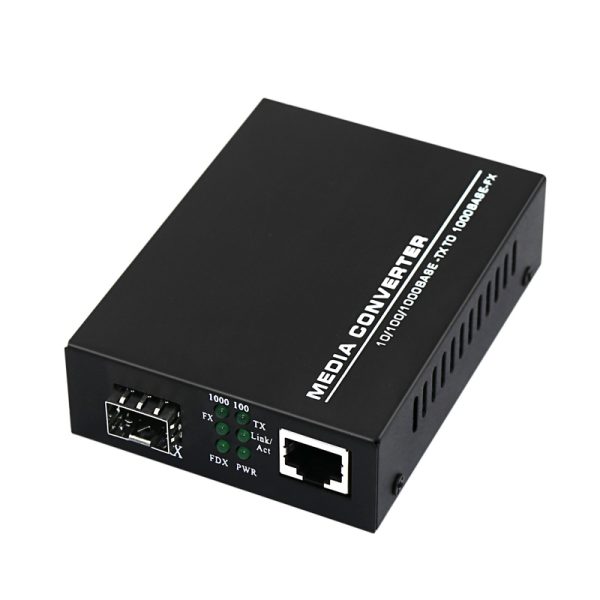

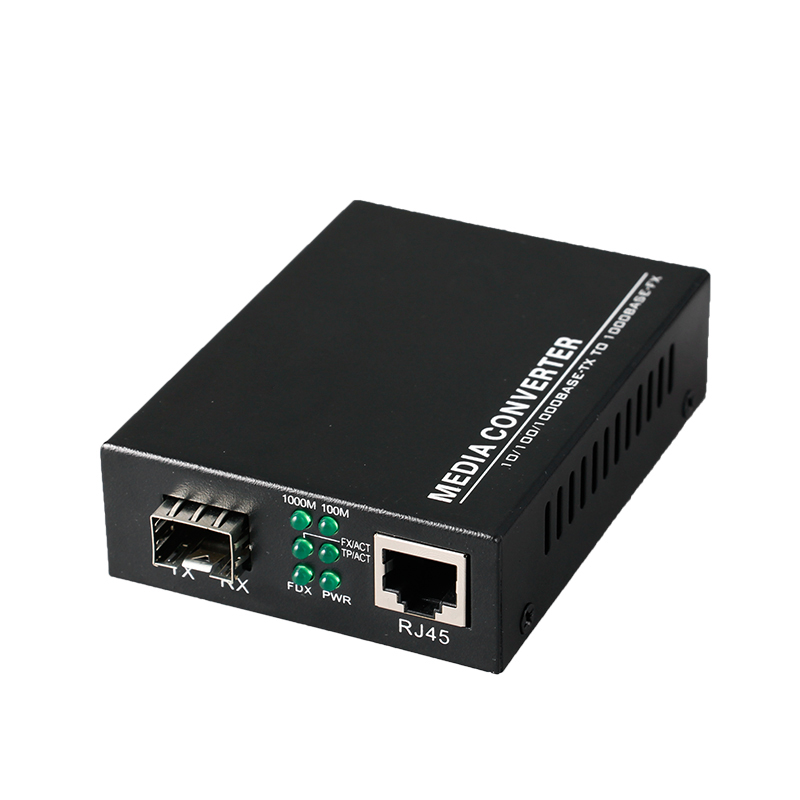

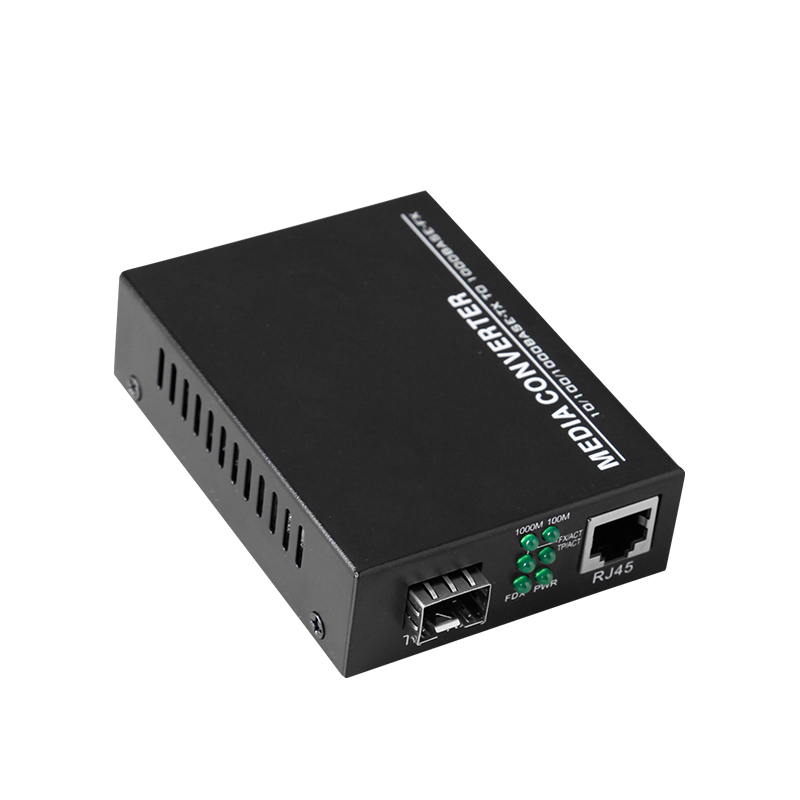

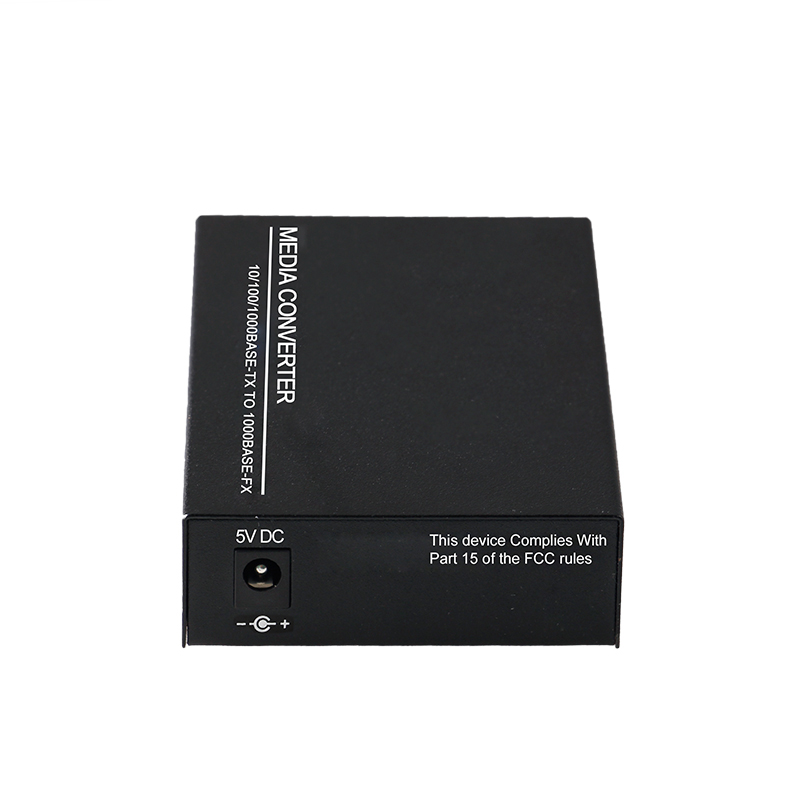

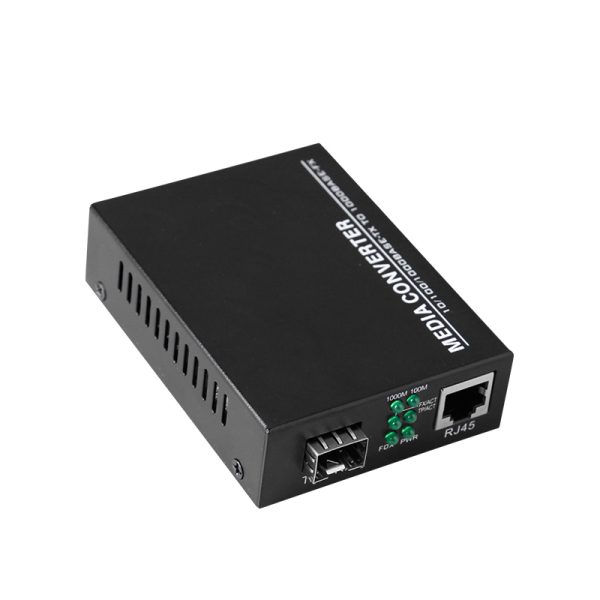

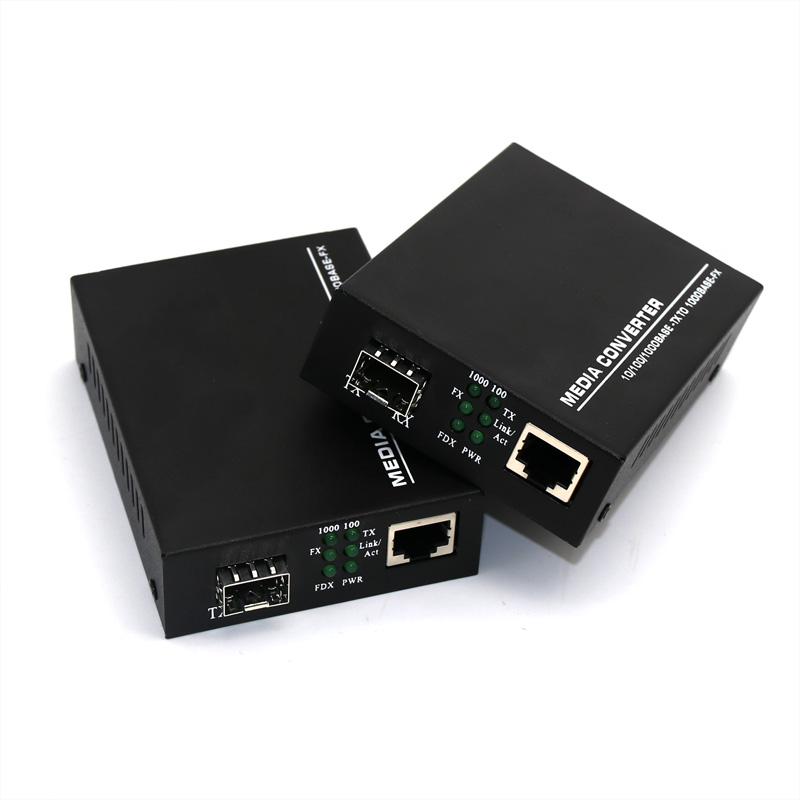

Gigabit SFP Fiber Media Converter

10/100/1000M SFP Media Converter with SFP Fiber Port. External Power Supply.

skype whatsapp


◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis

◆ Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission

◆ Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism

◆ Cache is 512KB, MAC address table is 4KB

◆ Ethernet 10Base-Tx to 10 Base-Fx or 100Base-Tx to 100Base- Fx or 1000Base-Tx-1000Base-Fx fiber media converte

◆ Support IEEE 802.3af, IEEE 802.3U, IEEE 802.1X,IEEE 802.3Z/AB, IEEE 802.1d protocol

◆ Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability

◆ TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)

◆ Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator

◆ Provide single RJ-45 port , and support automatically cross-recognition, connected with switch,set line

◆ FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc

◆ Excellent after-sales service, providing three years quality assurance and life-long maintenance services

◆ Harsh industrial environment or higher requirements for lightning protection

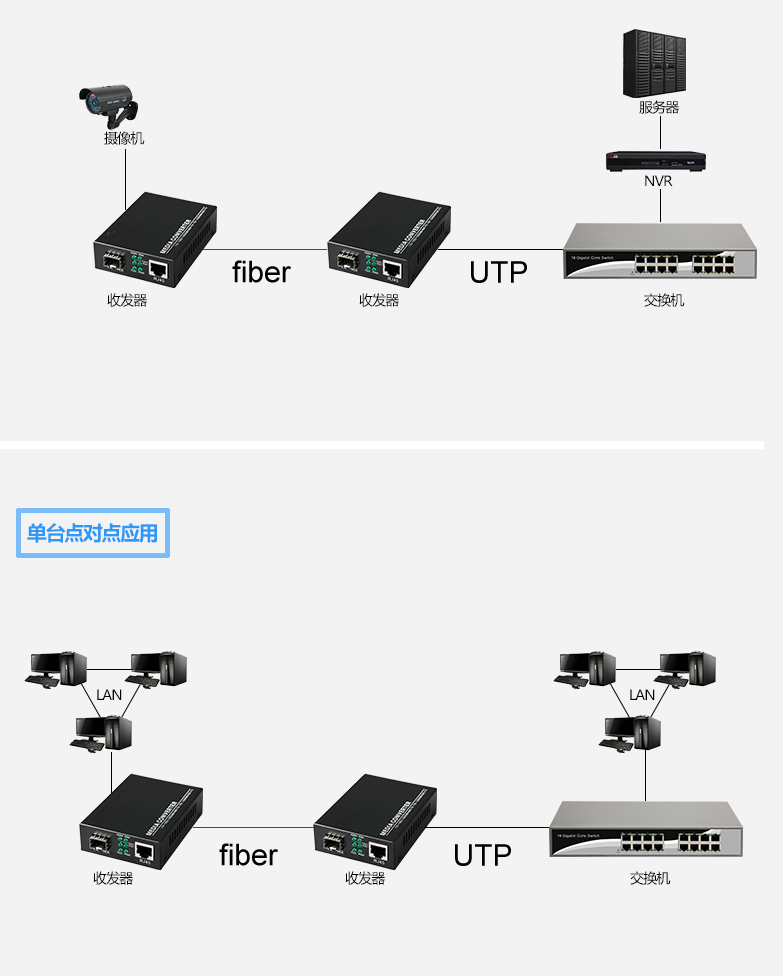

◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ highway monitoring system, electronic road monitoring, network cameras
◆ large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / campus monitoring, remote network video conference system

Package list

User Manual maintenance card Qualified Certification Power Adapter Device
1 copy 1 copy 1 copy 1 pc 1 set


Technical parameter list
Product Name Gigabit SFP Media Converter
Product Model BG-MC1000W-GE-SFP
Connector Type 1x copper cable RJ45 port +1x fiber SFP port
Bandwidth Fiber bankwidth 1.25G; Ethernet Bandwith:1.6Gbps (non-blocking)
MTBF 190,000 hours (about 21 years)
Network Protocol IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
Optical Fiber Single mode single fiber, SC port
Optical Distance 20km-120km
Wavelength 1310nm
Interface Rate 10/100/1000M
LED Display System, Power, Connecting, working status
Power Consumption 2.5W
Dimension 11x7x2.5cm
Working Environment Working Temperature:-20°~ 75°C; Storage Temperature: -40°~ 85°C; Working Humidity: 5%~90%, non-condensing; Storage Humidity: 5%~95%, non-condensing; Operational Altitude: 3000m (10,000ft); Storage Altitude: 3000m (10,000ft)
Certification CE,FCC,Rohs
Warranty 2 year warranty
