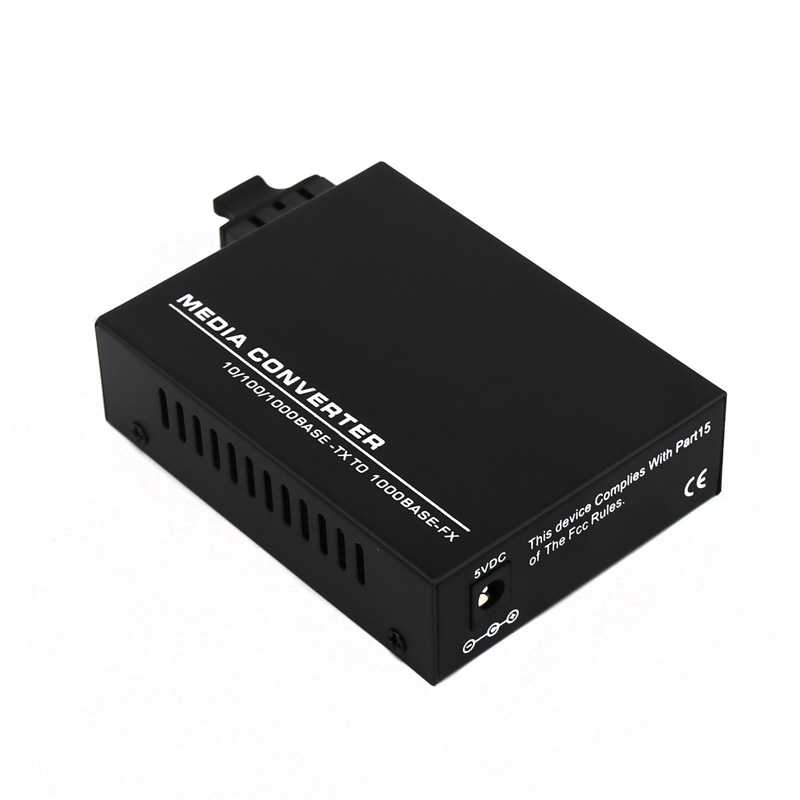

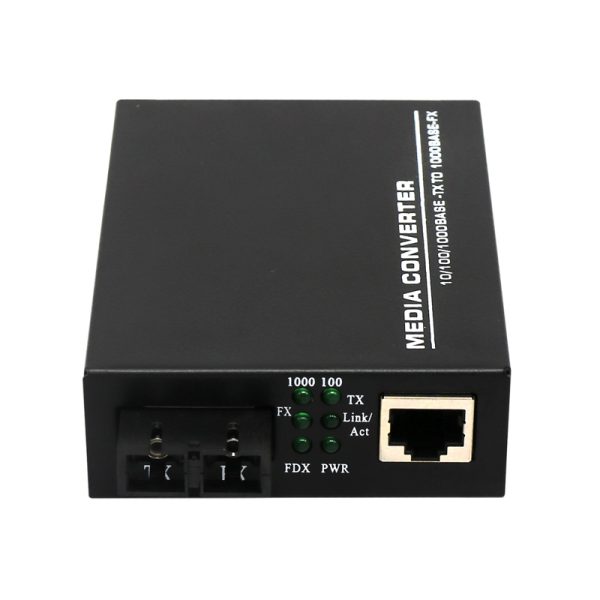

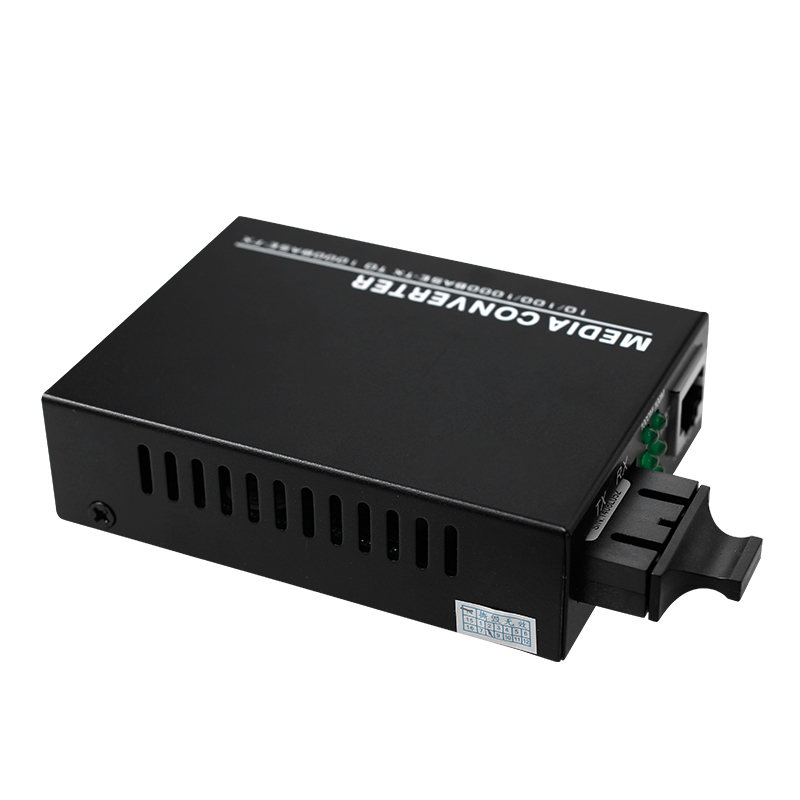

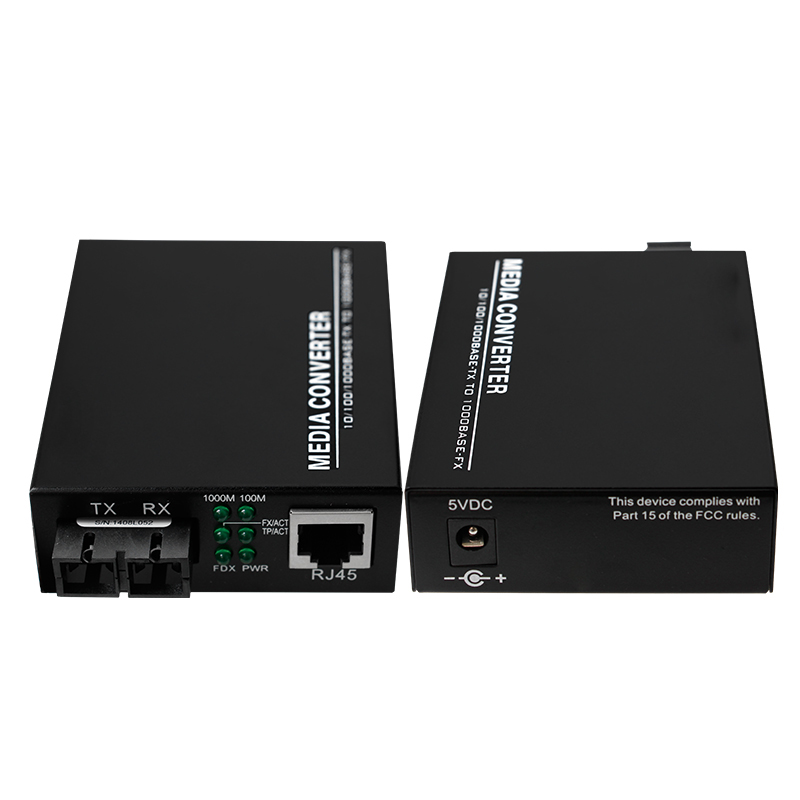

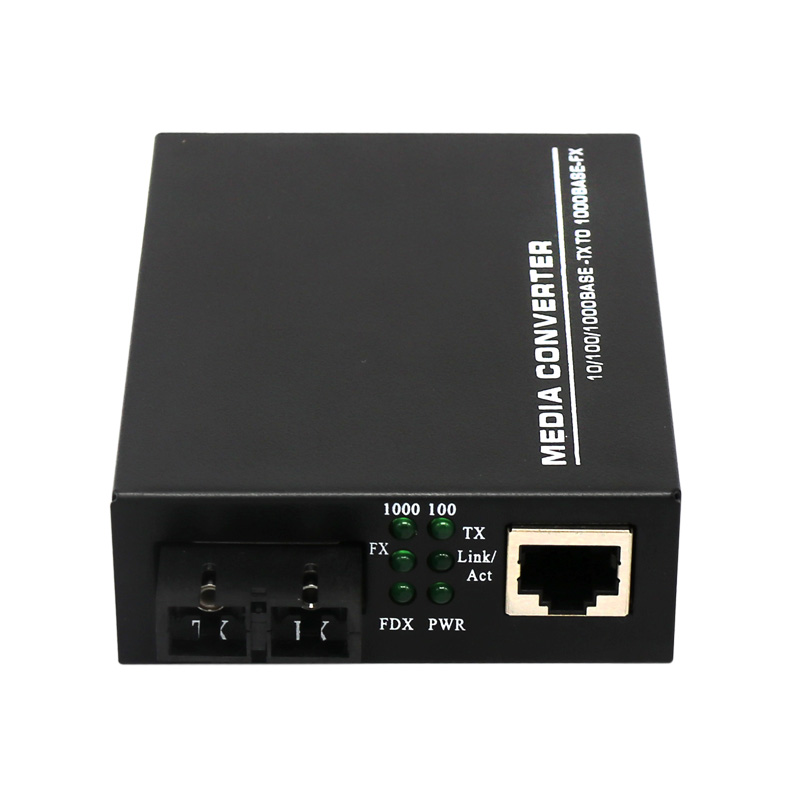

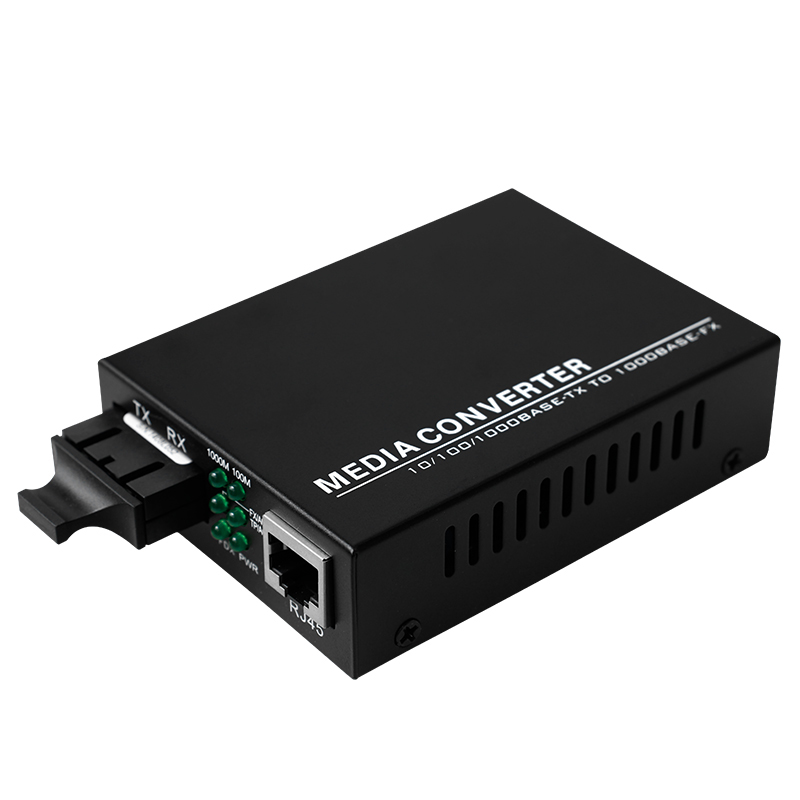

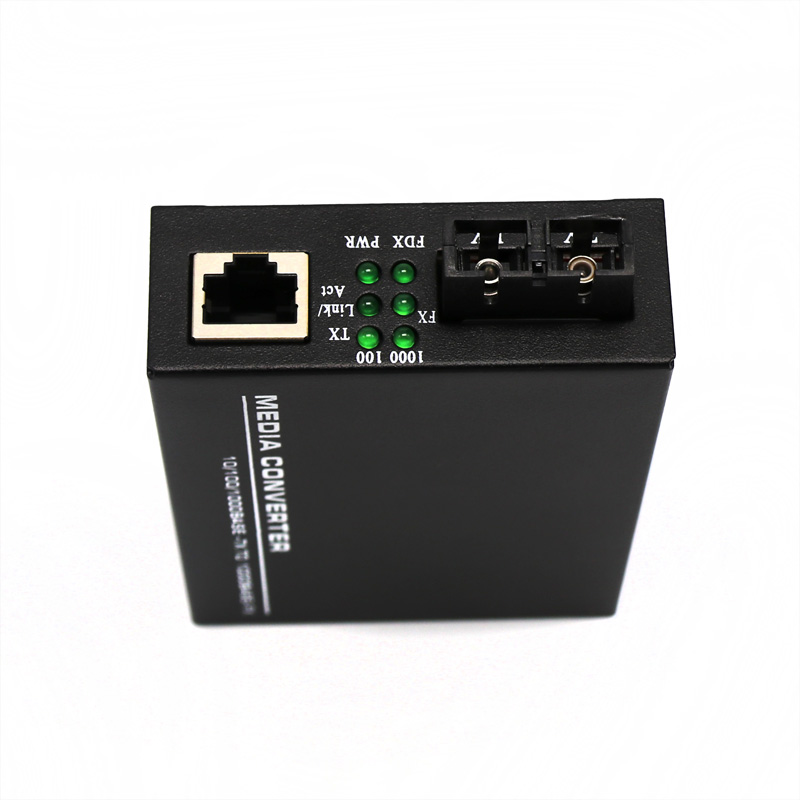

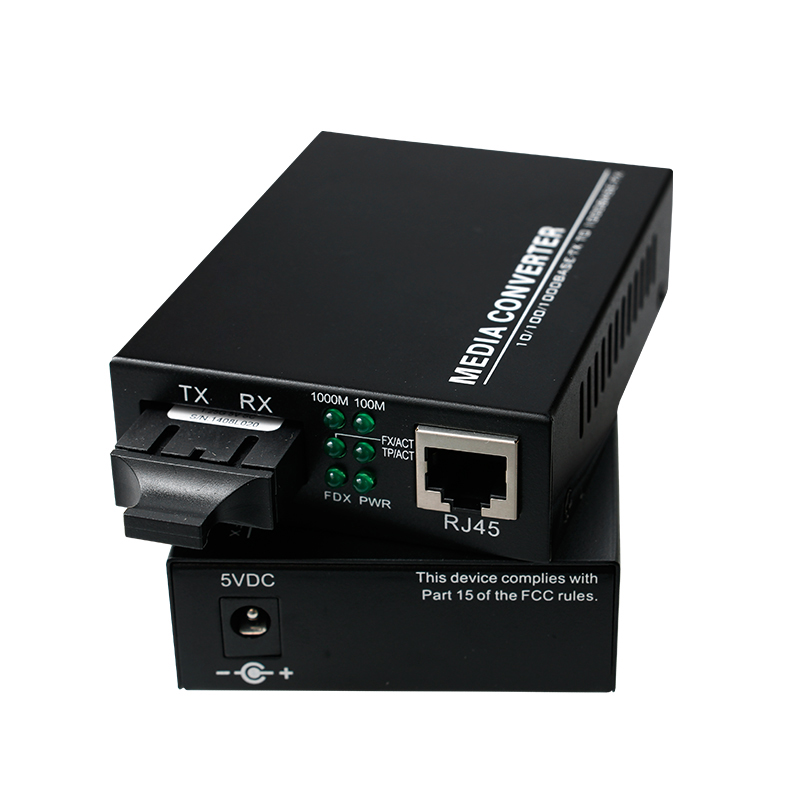

Gigabit Dual Fiber Media Converter
10/100/1000M Single Mode Dual Fiber Media Converter with SC Fiber Port. External Power Supply.
描述
Feature
◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis
◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis
◆ Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission
◆ Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism
◆ Cache is 512KB, MAC address table is 4KB
◆ Ethernet 10Base-Tx to 10 Base-Fx or 100Base-Tx to 100Base- Fx or 1000Base-Tx-1000Base-Fx fiber media converte
◆ Support IEEE 802.3af, IEEE 802.3U, IEEE 802.1X,IEEE 802.3Z/AB, IEEE 802.1d protocol
◆ Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
◆ TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
◆ Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
◆ Provide single RJ-45 port , and support automatically cross-recognition, connected with switch,set line
◆ FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
◆ Excellent after-sales service, providing three years quality assurance and life-long maintenance services

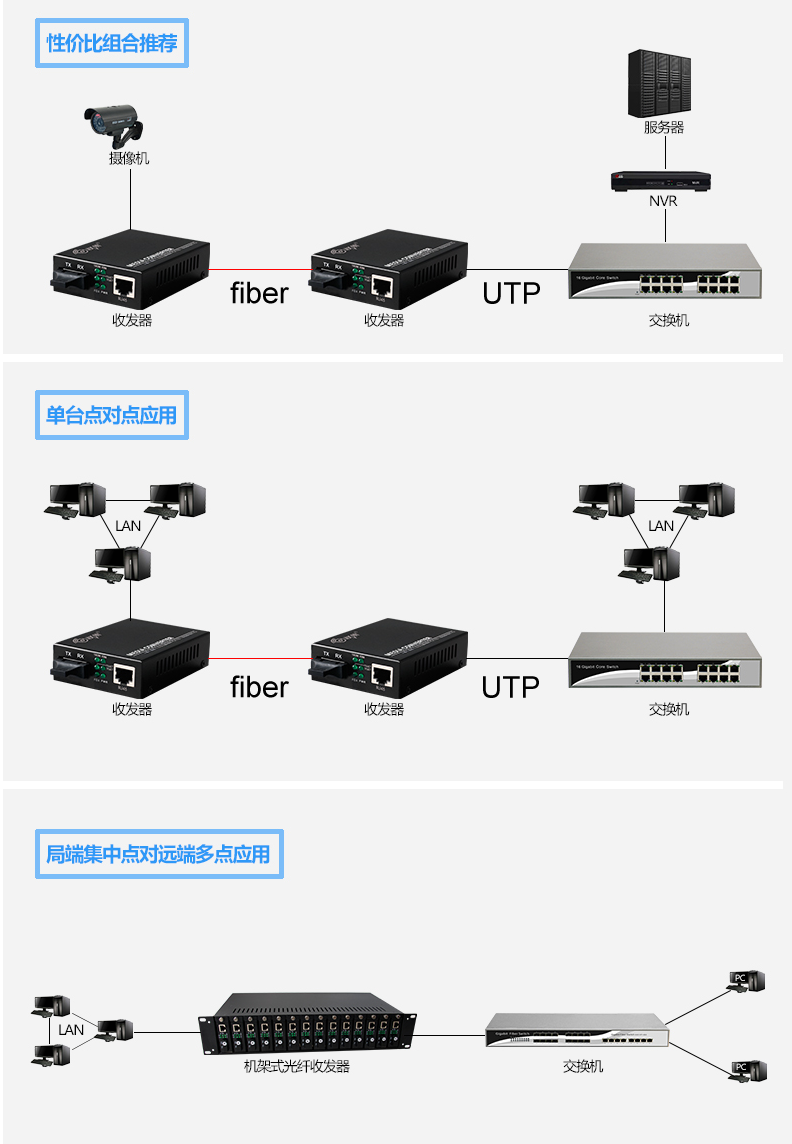

Application
◆ Harsh industrial environment or higher requirements for lightning protection
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ highway monitoring system, electronic road monitoring, network cameras
◆ large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / campus monitoring, remote network video conference system
Order Information: (Package: Stand-alone and Card-type, Card-type applied in 2U Standard Chassis)
| Model | Specification (Dual Fiber Interface: SC) External Power Supply |
| BG-MC1000W-GE-2 | 10/100/1000M, Multimode 1310nm, SC,2km |
| BG-MC1000W-GE-20 | 10/100/1000M, Single Mode 1310nm, SC,20km |
| BG-MC1000W-GE-40 | 10/100/1000M, Single Mode 1310nm, SC,40km |
| BG-MC1000W-GE-60 | 10/100/1000M, Single Mode 1550nmDFB, SC,60km |
| BG-MC1000W-GE-100 | 10/100/1000M, Single Mode 1550nmDFB,SC, 100km |
Note: We could according to your requirements custom-made.Fiber transmission distance: 40KM,60KM,100KM.
Package list
| User Manual | maintenance card | Qualified Certification | Power Adapter | Device |
| 1 copy | 1 copy | 1 copy | 1 pc | 1 set |
| Technical parameter list | |
| Product Name | Dual Fiber Gigabit Media Converter with SC Fiber Port |
| Product Model | BG-MC1000W-GE-20 |
| Connector Type | 1x copper cable RJ45 port +1x fiber SC port |
| Bandwidth | Fiber bankwidth 1.25G; Ethernet Bandwith:1.6Gbps (non-blocking) |
| MTBF | 190,000 hours (about 21 years) |
| Network Protocol | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI |
| Optical Fiber | Single mode dual fiber, SC port |
| Optical Distance | 20km |
| Wavelength | 1310nm |
| Interface Rate | 10/100/1000M |
| LED Display | System, Power, Connecting, working status |
| Power Consumption | 2.5W |
| Dimension | 11x7x2.5cm |
| Working Environment | Working Temperature:-20°～ 75°C; Storage Temperature: -40°～ 85°C; Working Humidity: 5%～90%, non-condensing; Storage Humidity: 5%～95%, non-condensing; Operational Altitude: 3000m (10,000ft); Storage Altitude: 3000m (10,000ft) |
| Certification | CE,FCC,Rohs |
| Warranty | 2 year warranty |
