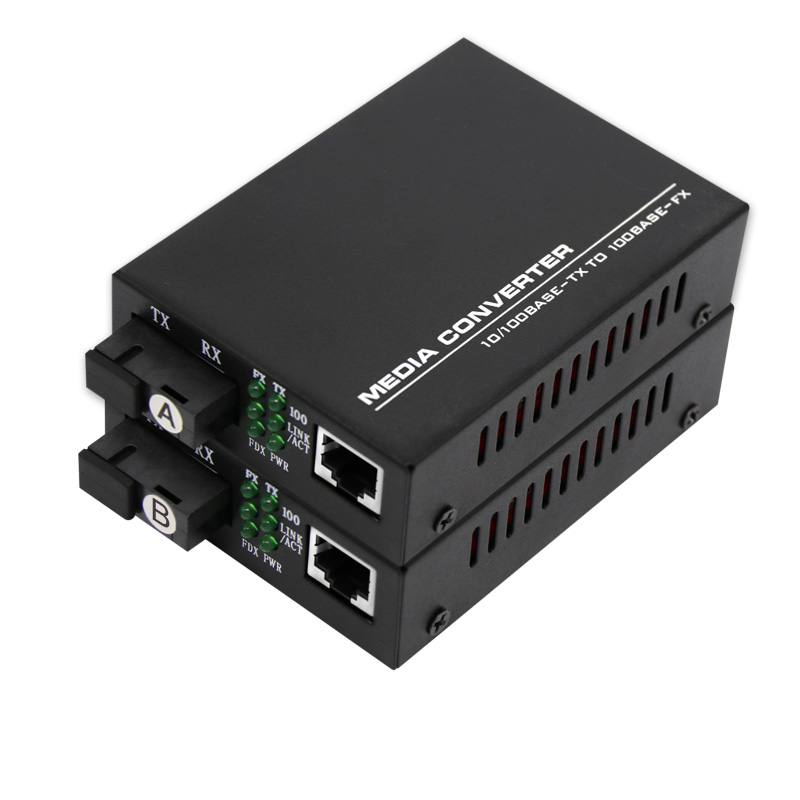

100M Single Fiber Media Converter

10/100M 1-Port Media ConverterSingle Mode Single FiberSC interface. External Power Supply

skype whatsapp



 ◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis

◆ Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism

◆ Cache is 512KB, MAC address table is 4KB

◆ Ethernet 10Base-T or 100Base-Tx to 100Base-Fx fiber media converte

◆ Support IEEE 802.3u, IEEE 802.3x, IEEE 802.1d

◆ Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability

◆ TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)

◆ Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator

◆ Provide 1 RJ-45 port , and support automatically cross-recognition, connected with switch,set line

◆ FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc

◆ Excellent after-sales service, providing three years quality assurance and life-long maintenance services

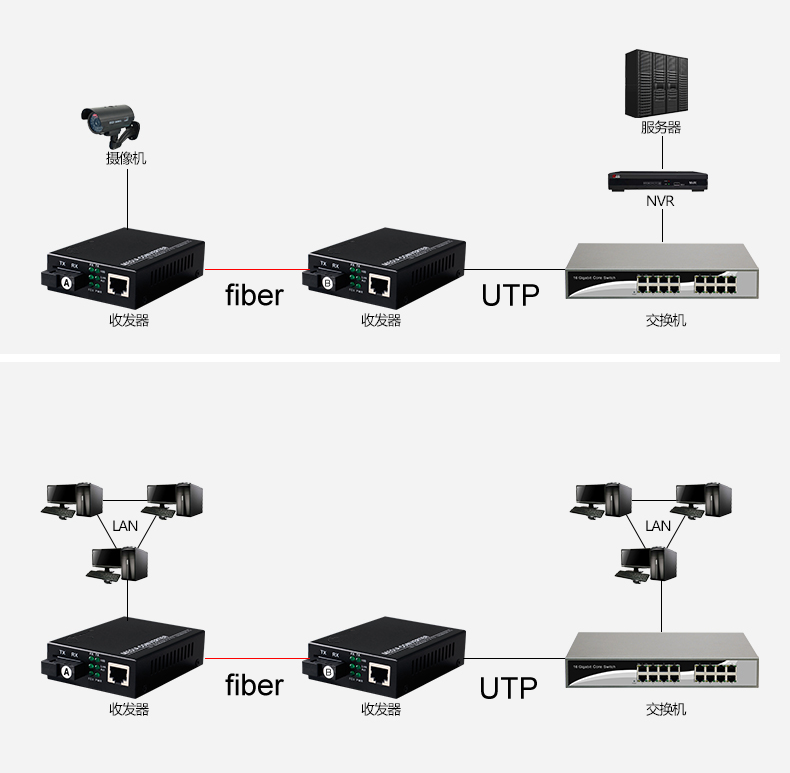

Application◆ Harsh industrial environment or higher requirements for lightning protection
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ highway monitoring system, electronic road monitoring, network cameras
◆ large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / campus monitoring, remote network video conference system

Order Information

Model    Specification (Fiber Interface: SC) Max transmission distance
BG-MC100W-FE-20-T/R 10/100M, Single Mode Single Fiber Media Converter,SC,External Power Supply 20KM
BG-MC100W-FE-40-T/R 10/100M, Single Mode Single Fiber Media Converter,SC,External Power Supply 40KM
BG-MC100W-FE-60-T/R 10/100M, Single Mode Single Fiber Media Converter,SC,Internal Power Supply 60KM
BG-MC100W-FE-100-T/R 10/100M, Single Mode Single Fiber Media Converter,SC,Internal Power Supply 100KM

Note: We could according to your requirements custom-made.Fiber transmission distance: 40KM,60KM,100KM.

Package  list

User Manual maintenance card Qualified Certification Power Adapter Device
1 copy 1 copy 1 copy 1 pc 1 set


Technical Specification
Product Name  10/100M Single Mode Single Fiber Media Converter
Model  BG-MC100W-FE-20-T/R
Description 10/100M 1 UTP Port Single Mode Single Fiber Ethernet Media Converter
Ports 1 10/100Mbps copper RJ45 Port + 1 10/100Mbps SC Port
Transmision Distance 40Km
Optical Fiber Single Mode Single Fiber
SC TX1310nm/RX1550nm
Fiber Bandwidth  155M
Ethernet Bandwidth  10/100MHz
Network Media 10base-T: Cat.3 Cat.4 Cat.5 UTP Cable
100base-TX/1000base-TX:super cat.5 UTP Cable
Standards IEEE 802.3i IEEE 802.3u IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI
Forward Mode Store and Forward
Environment  Operating Temperature: 0°C~+70°C
Storage Temperature: -45°C~+95°CRelative Humidity: 0~95% (non-condensing)
EMI Compatiblity  FCC Class A CE
Total Power  2.5W (Input: DC5V 1000mA)
Power  AC100 ~ 240V,DC5V 1A
Dimensions (L x W x H)  11×7×2.5cm
