100M Dual Fiber Media Converter

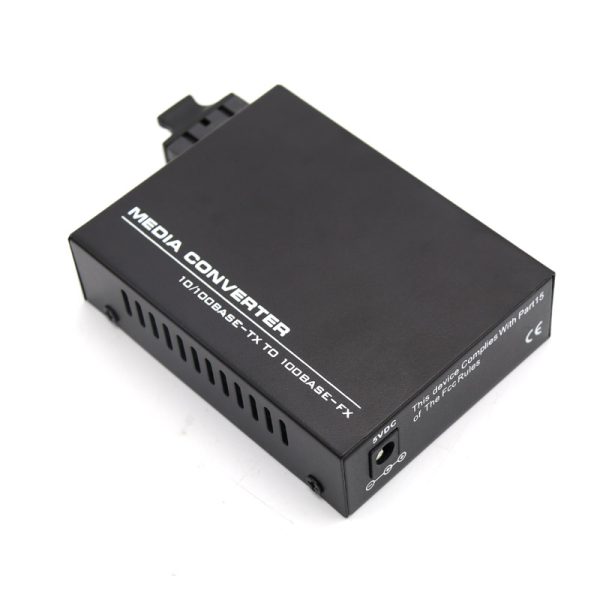

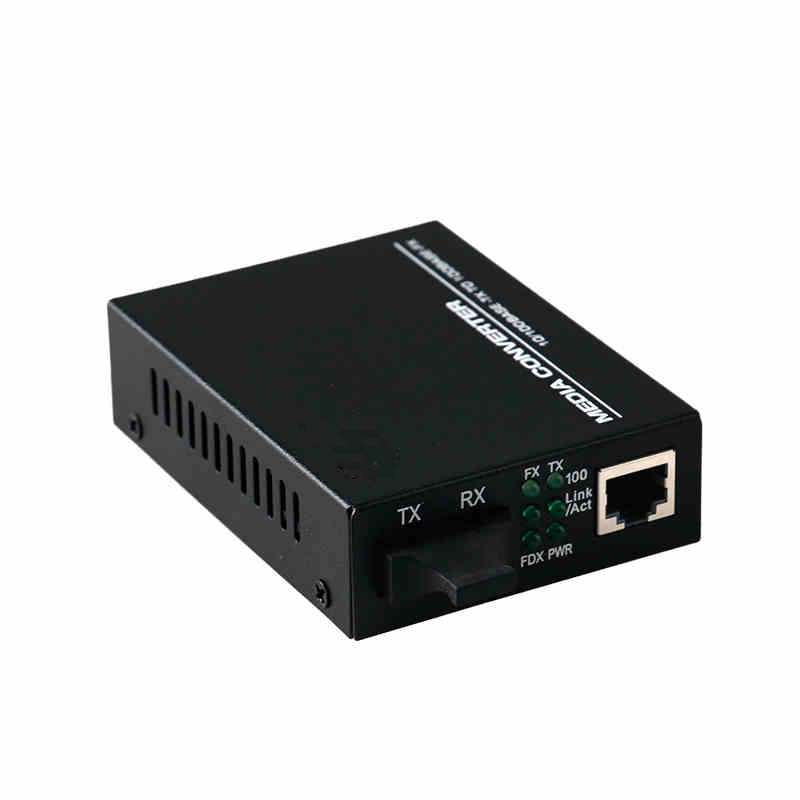

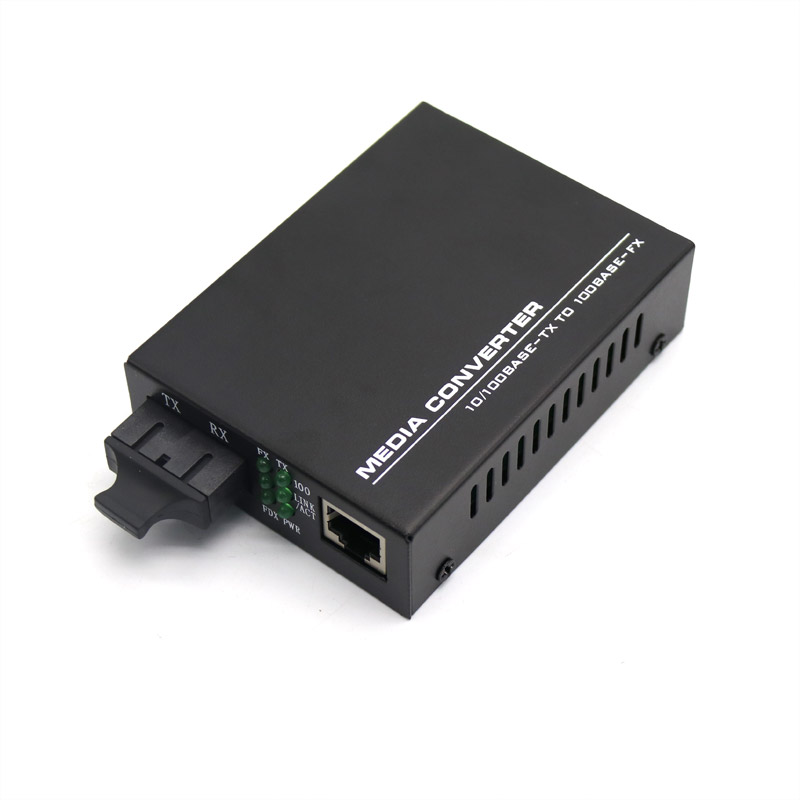

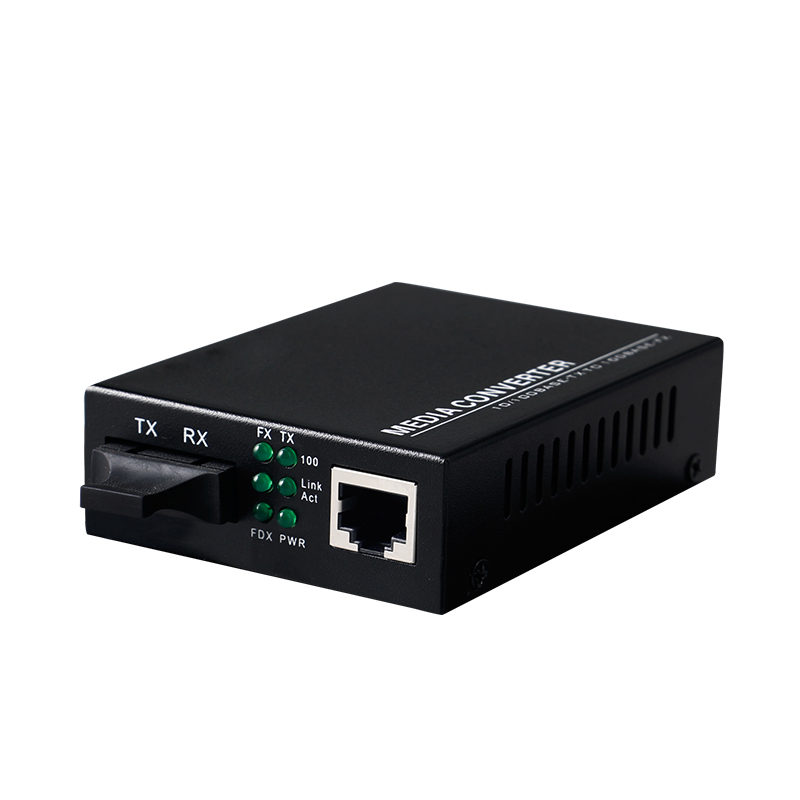

10/100M 1-Port Media ConverterSingle Mode Dual FiberSC interface. External Power Supply
Description
Feature
◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis
◆ Card-type or stand-alone, apply in centralized management 2U aluminum chassis
◆ Using WDM wavelength 1310nm and 1550nm to achieve single fiber bi-directional transmission
◆ Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism
◆ Cache is 512KB, MAC address table is 4KB
◆ Ethernet 10Base-T or 100Base-Tx to 100Base-Fx fiber media converte
◆ Support IEEE 802.3u, IEEE 802.3x, IEEE 802.1d
◆ Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
◆ TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)

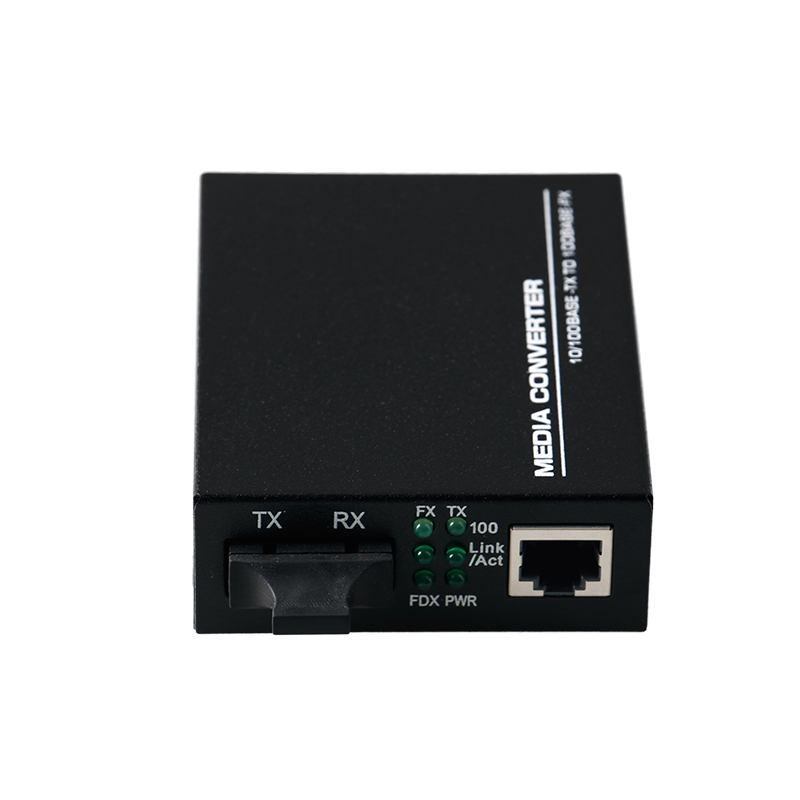

◆ Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
◆ Provide single RJ-45 port , and support automatically cross-recognition, connected with switch,set line
◆ FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
◆ Excellent after-sales service, providing three years quality assurance and life-long maintenance services

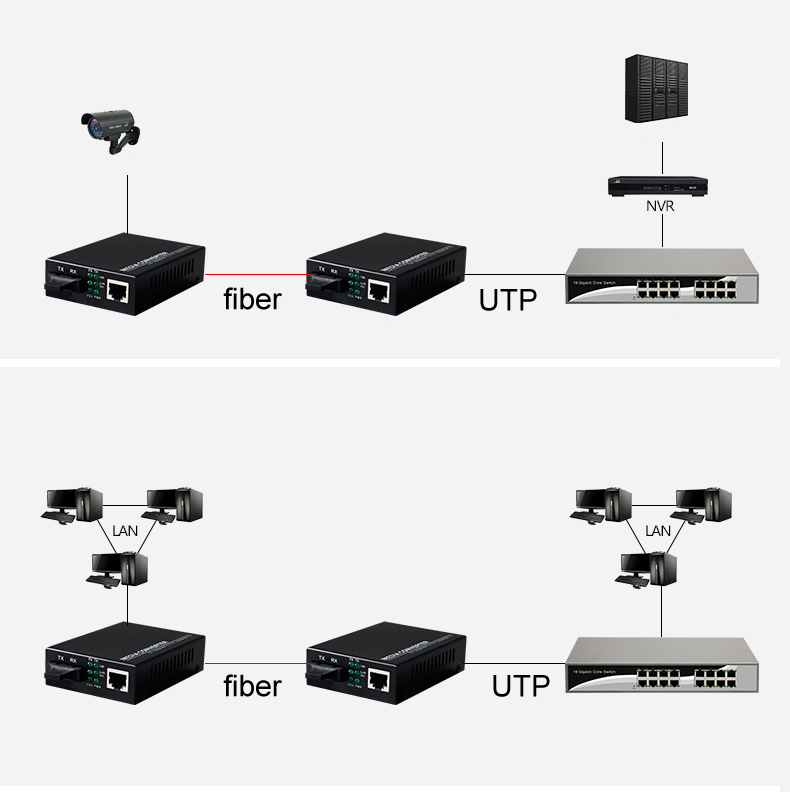

Application
◆ Harsh industrial environment or higher requirements for lightning protection
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ highway monitoring system, electronic road monitoring, network cameras
◆ large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / campus monitoring, remote network video conference system
Order Information
| Model | Specification (Dual Fiber Interface: SC) |
| BG-MC100W-FE-2 | 10/100M, Multimode 1310nm, 2km |
| BG-MC100W-FE-20 | 10/100M, Single Mode 1310nm, 20km |
| BG-MC100W-FE-40 | 10/100M, Single Mode 1310nm, 40km |
| BG-MC100W-FE-60 | 10/100M, Single Mode 1310nm, 60km |
| BG-MC100W-FE-110 | 10/100M, Single Mode 1550nmDFB, 110km |
Note: We could according to your requirements custom-made.Fiber transmission distance: 40KM,60KM,100KM.

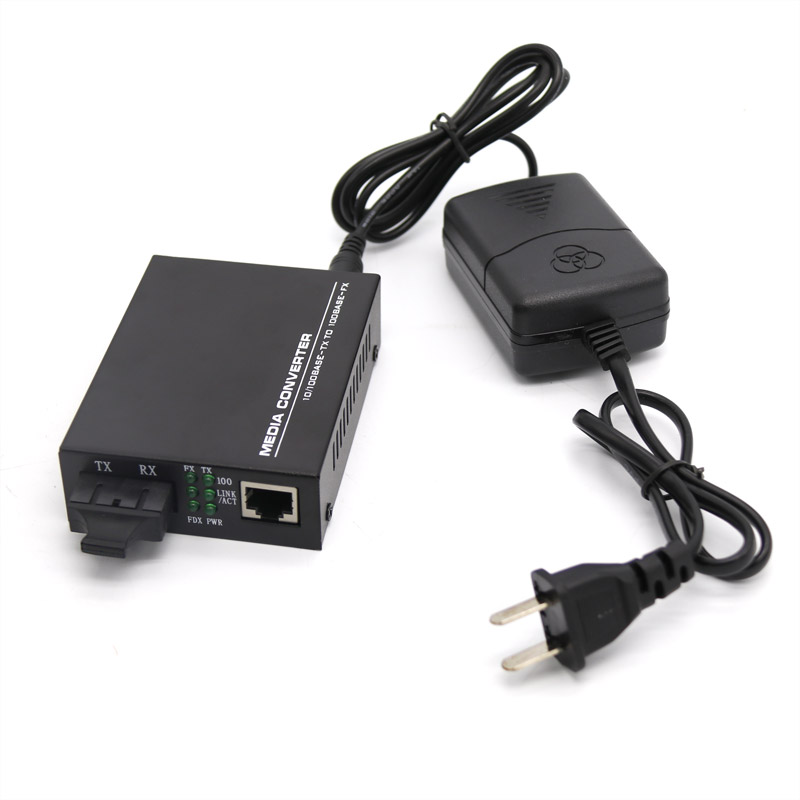

Package list
| User Manual | maintenance card | Qualified Certification | Power Adapter | Device |
| 1copy | 1copy | 1copy | 1 pc | 1 set |
| Technical Specification | |
| Product Name | 10/100M Single Mode Dual Fiber Media Converter |
| Model | BG-MC100W-FE-20 |
| Description | 10/100M 1 UTP Port Single Mode Dual Fiber Ethernet Media Converter |
| Ports | 1 10/100Mbps copper RJ45 Port + 1 10/100Mbps Fiber SC Port |
| Transmision Distance | 20Km |
| Optical Fiber | Single Mode Dual Fiber,SC, TX1310nm/RX1550nm |
| Fiber Bandwidth | 155M |
| Ethernet Bandwidth | 10/100MHz |
| Network Media |
10BASE-T: Cat.3, Cat.4, Cat.5 UTP Cable 100BASE-TX/1000BASE-TX：super cat.5 UTP Cable |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI |
| Forward Mode | Store and Forward |
| Environment |
Operating Temperature: 0°C~+70°C Storage Temperature: -45°C~+95°C Relative Humidity: 0~95% (non-condensing) |
| EMI Compatiblity | FCC Class A, CE |
| Total Power | 2.5W (Input: DC5V 1000mA) |

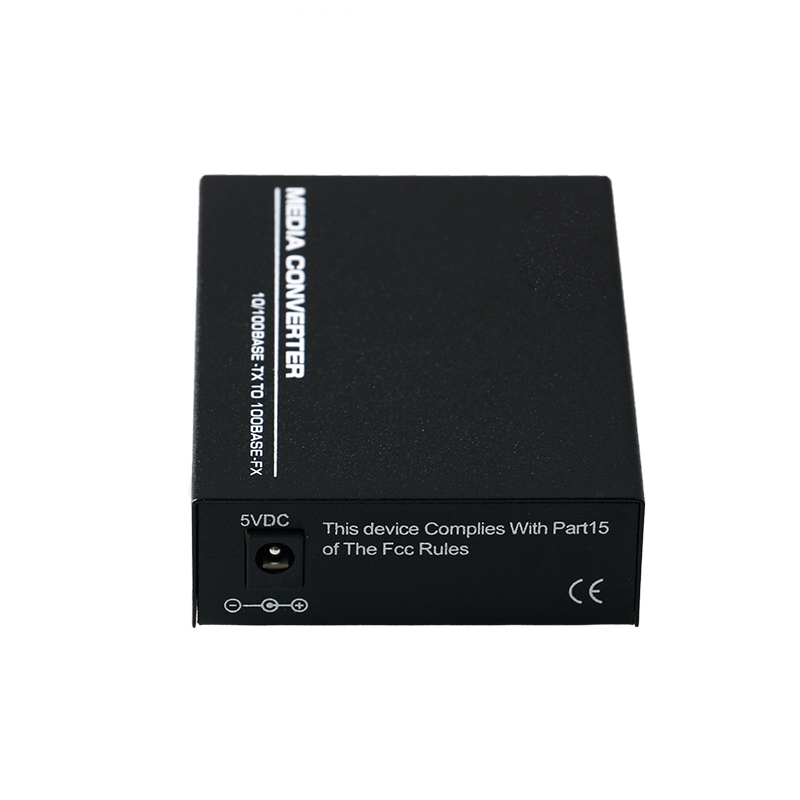

| Power | AC100 ～ 240V,DC5V 1A |
| Dimensions (L x W x H) | 11×7×2.5cm |
