Ordering information
Model | Specification | Distance | |
BGSDI-4VZ-2 | SDI Video Multiplexer | 500m(Multimode Single Fiber) | |
BGSDI-4VZ-20 | SDI Video Multiplexer | 20km(Single Mode Dual Fiber) | |
BGSDI-4VZ1DF-20 | HD-SDI+1 CH Reverse Data Video Multiplexer |
20 km(Single Mode Single Fiber) |
Technical Specification | |

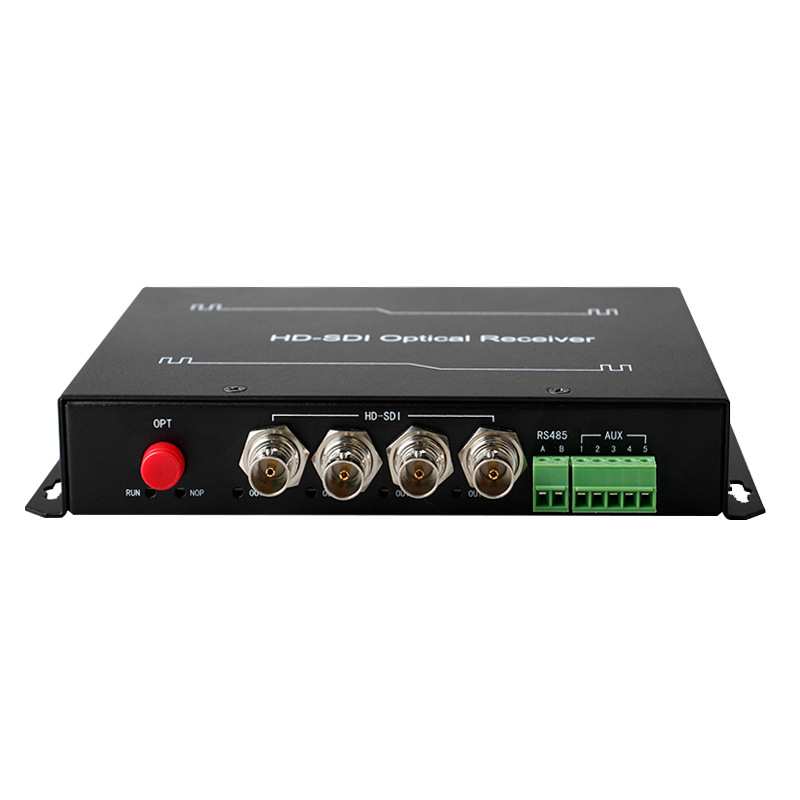

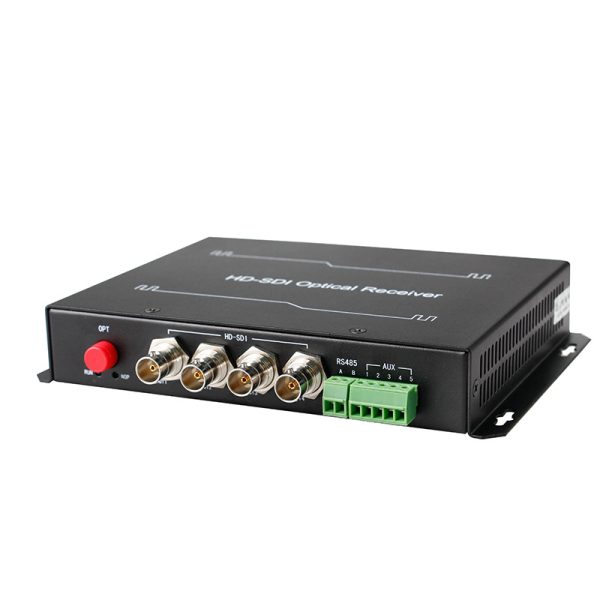

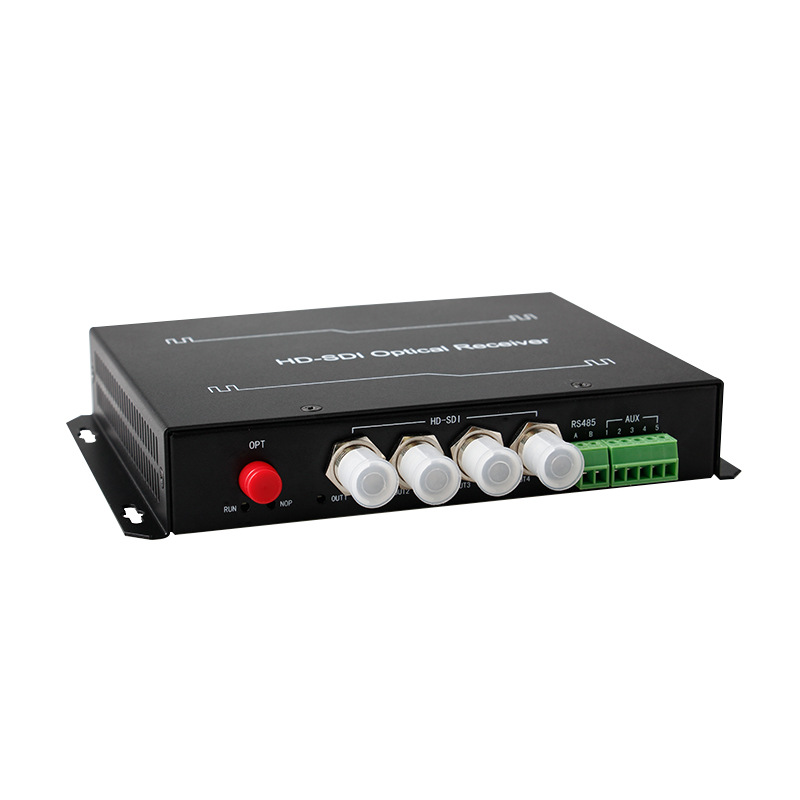

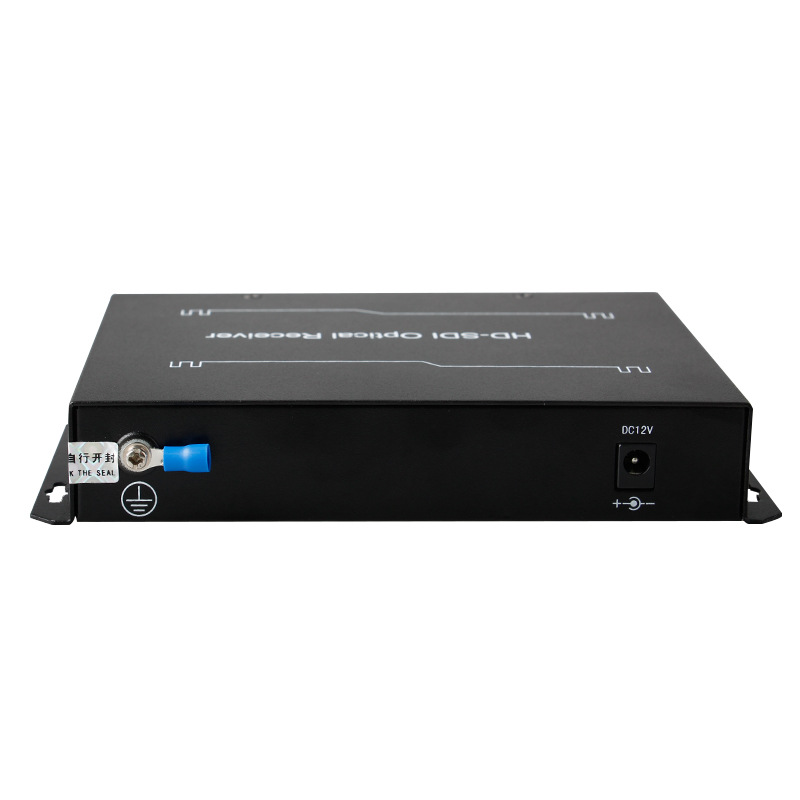

Product Name | HD-SDI video converter |
Model | BGSDI-4VZ1DF-20 |
Description | Compatible with SDI and ASI signal,SDI/ASI signal self-adaption |
Ports | 4 channel HD-SDI, + 1 channel reverse data(RS485/232/422 data) |
Transmission Distance | 20km-100km |
Fiber Interface | FC, 1310nm/1550nm |
Video Interface | BNC |
Reflection loss | >15dB |
Working Environment |
Operating Temperature: -40°~ 85°C Storage Temperature: -45°~ 95°C Operating Humidity: 5%~95%, non-condensing |
EMI Compatiblity | FCC Class A, CE |
Total power consumption | 3w(Input:DC5V) |
Power Supply | AC85-260V/50Hz |
Dimensions size | 20.8*20.8*2.5cm |
Warranty | 3 year warranty |
