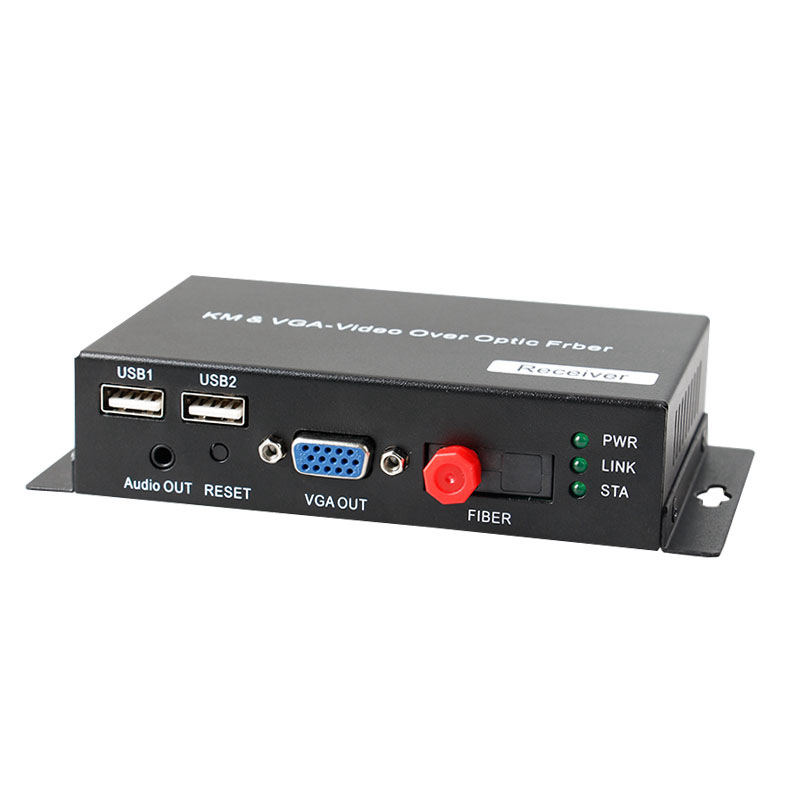

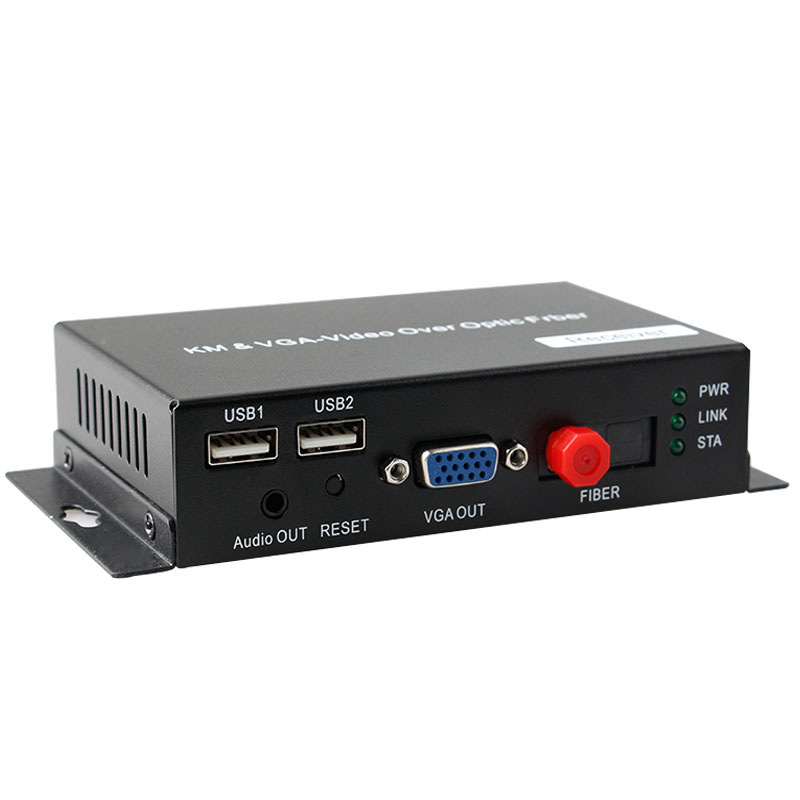

1-CH VGA Video Converter+1-CH Data +1-CH Audio Converter

Description

Product Features:

◆ All-digital, uncompressed, high-definition optical transmission

◆ Support 1 channel 1 channel VGA high-definition video and two-way audio (analog stereo or digital stereo) signal parallel remote transmission, etc.

◆ Compatible with standard VGA ~ WUXGA

◆ Automatic identification and configuration of various display modes

◆ Support UXGA 1600×1200, WUXGA1920x1080 @ 60Hz, HDTV 1080p 1920×1080 @ 60Hz resolution, resolution, maximum bandwidth of 500MHz

◆ Built-in super dynamic image processing technology, the picture is clear and stable

◆ Support stereo audio, microphone or headphone output or input

◆ AES / EBU digital audio 110Ω balanced professional XLR socket standard

◆ Compatible with any professional AES / EBU, AES3id 75Ω unbalanced standard digital audio

◆ Compatible with any consumer IEC 60958 Type II S / PDIF 75Ω digital audio standards

◆ Built-in cable automatic equalizer and clock retiming

◆ Single and multi-mode fiber transmission

◆ No software setup, plug and play, hot swappable

◆ Industrial design, high reliability

◆ Support user customization and OEM

Order Information: (Package: Stand-alone and Card-type, Card-type applied in 2U Standard Chassis)

Model	Specification	Max transmission distance
BGVA-1V1A-HD	1 Channel VGA Video Converter+1 Channel Audio	5KM(Multimode), 20KM(Single mode)
BGVGA-AV1D1A-HD	1-CHVGA Video Converter+1-CH Data +1-CH Audio	5KM(Multimode), 20KM(Single mode)

Technical Specification
Product Name	1 Channel VGA Video Converter+1 Channel Audio+1 Channel Data
Model	BGVGA-AV1D1A-HD
Description	1 Channel VGA Video Converter+1 Channel Audio+1 Channel Data
Ports	one VGA port + one Audio port
Transmission Distance	5KM(Multimode), 20KM(Single mode)
Fiber Interface	FC, 1310nm/1550nm
Video Interface	VGA
Video bandwidth	500HMz(2dB)
Video SNR	80dB
Audio bandwidth	24bit
Working Environment	Operating Temperature: -40°～ 85°C Storage Temperature: -45°～ 95°C Operating Humidity: 5%～95%, non-condensing
EMI Compatiblity	FCC Class A, CE
Total power consumption	15w

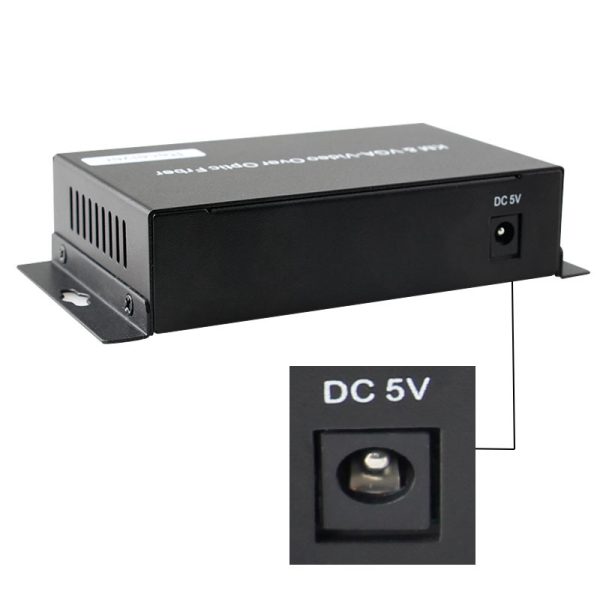

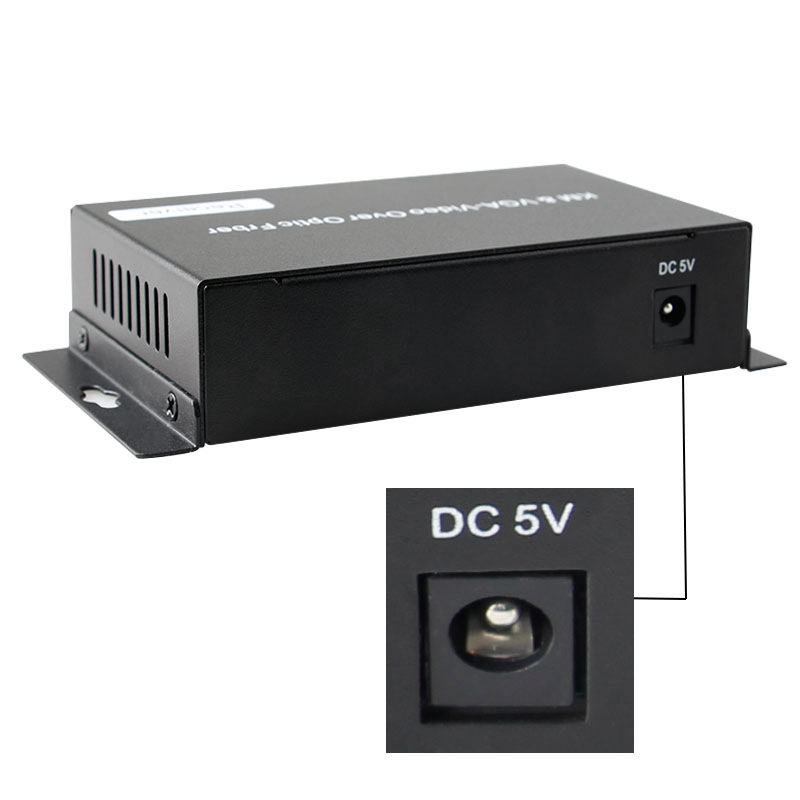

Power Supply	AC100-240V 50/60Hz; Output DC5V1A
Dimensions size	14.34.82.5cm
Warranty	3 year warranty
