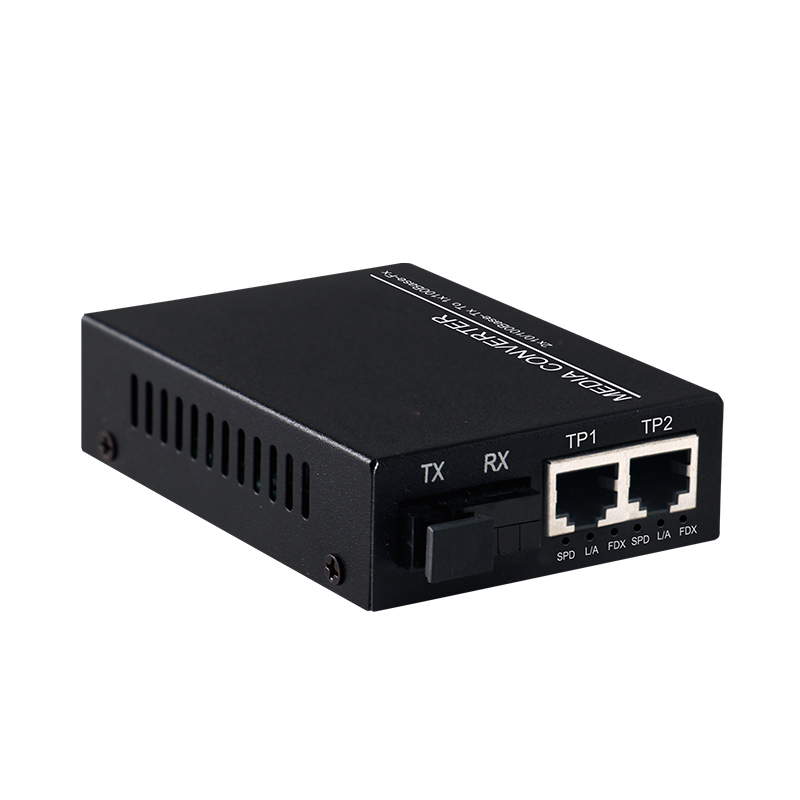

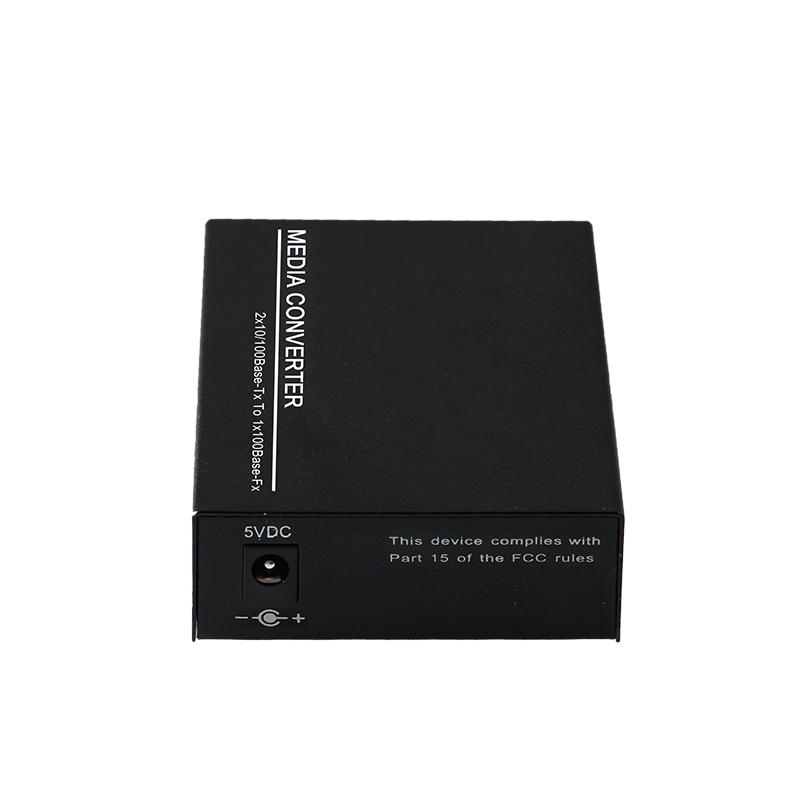

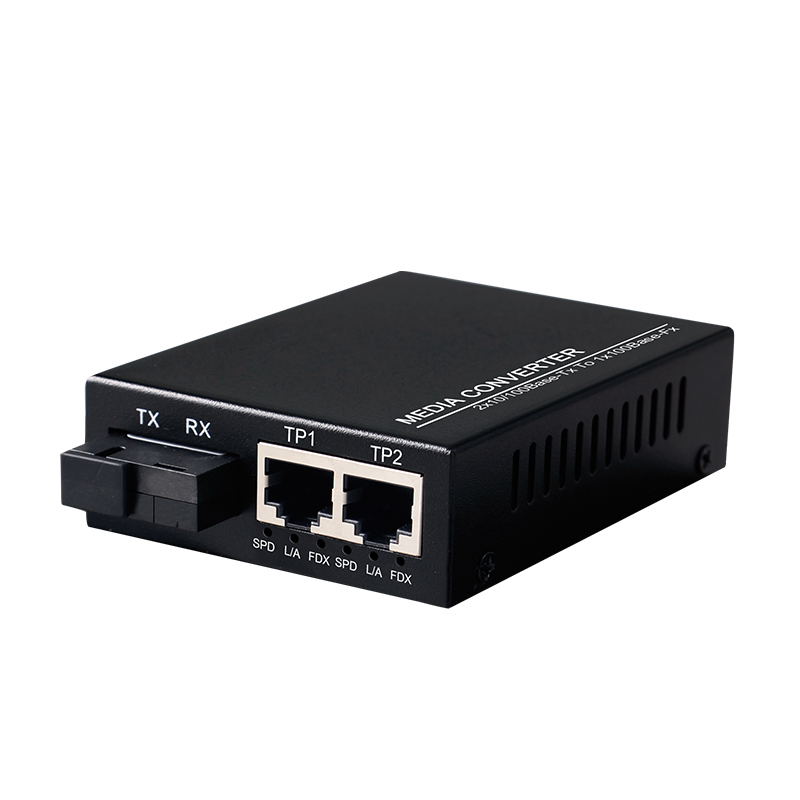

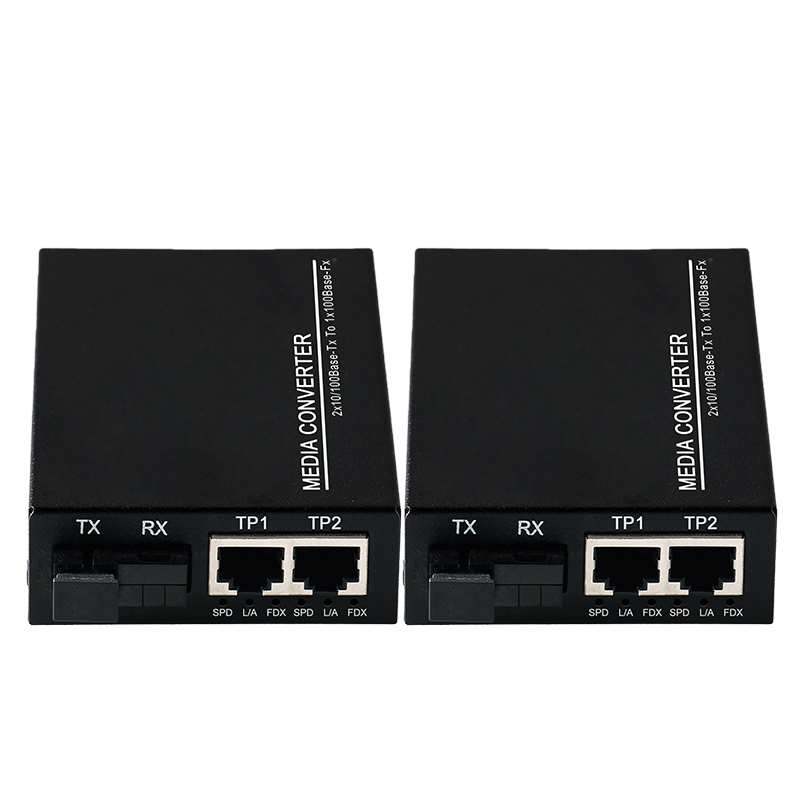

100M 2-Port Fiber Media Converter
Single Mode Dual Fiber SC interface External Power Supply
描述
Feature
◆ Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism
◆ Cache is 512KB, MAC address table is 4KB
◆ Ethernet 10Base-T or 100Base-Tx to 100Base-Fx, fiber media converte
◆ Support IEEE 802.3u, IEEE 802.3x, IEEE 802.1d
◆ Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability
◆ TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)
◆ Provide remote link loss diagnostics,TP port and FX port link connection diagnostic,dynamic data transmission,full / half duplex,rate indicator
◆ Provide 2 RJ-45 port , and support automatically cross-recognition, connected with switch,set line
◆ FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc
◆ Excellent after-sales service, providing three years quality assurance and life-long maintenance services

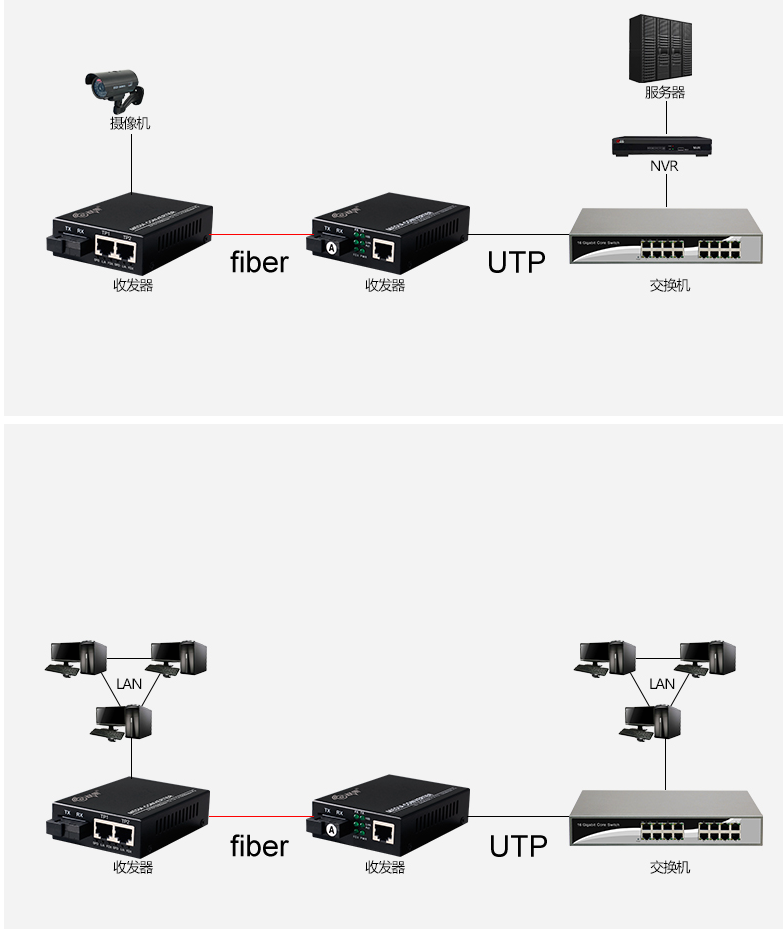

Application
◆ Harsh industrial environment or higher requirements for lightning protection
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City
◆ highway monitoring system, electronic road monitoring, network cameras
◆ large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / campus monitoring, remote network video conference system
Order Information: (Package: Stand-alone and Card-type, Card-type applied in 2U Standard Chassis)
| Model | Specification（Fiber Interface:SC） | Maximum transmission distance |
| BG-MC100W-1F2E-20 | 10/100M Single Mode Dual Fiber Media Converter, SC, 1310nm, External Power Supply | 20 KM |
| BG-MC100W-1F2E-40-T/R | 10/100M Single Mode Single Fiber Media Converter, SC,1310/1550nm, External Power Supply | 40 KM |
| BG-MC100W-1F2E-60-T/R | 10/100M Single Mode Single Fiber,SC, 1310/1550nm, Internal Power Supply | 60 KM |
| BG-MC100W-1F2E-100-T/R | 10/100M Single Mode Single Fiber, SC, 1310/1550nm, Internal Power Supply |
100 KM
|
Note: We could according to your requirements custom-made.Fiber transmission distance: 40KM,60KM,100KM.
Package Checklist
| User Manual | maintenance card | Qualified Certification | Power Adapter | Device |
| 1copy | 1copy | 1copy | 1 pc | 1 set |
| Technical Specification | |
| Product Name | 10/100M Single Mode Dual Fiber Media Converter |
| Model | BG-MC100W-1F2E-20 |
| Description | 10/100M 2 TP Port Single Mode Dual Fiber Ethernet Media Converter |
| Ports | 2 10/100Mbps copper RJ45 Port + 1 10/100Mbps SC Port |
| Transmision Distance | 20Km |
| Optical Fiber | Single Mode Dual FiberSC 1310nm/1550nm |
| Fiber Bandwidth | 155M |
| Ethernet Bandwidth | 10/100MHz |
| Network Media |
10base-T: Cat.3 Cat.4 Cat.5 UTP Cable 100base-TX/1000base-TX：super cat.5 UTP Cable |
| Standards | IEEE 802.3i IEEE 802.3u IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI |
| Forward Mode | Store and Forward |
| Environment |
Operating Temperature: 0°C~+70°C Storage Temperature: -45°C~+95°C Relative Humidity: 0~95% (non-condensing) |
| EMI Compatiblity | FCC Class A CE |
| Total Power | 2.5W (Input: DC5V 1000mA) |
| Power | AC100 ～ 240VDC5V 1A |
| Dimensions (L x W x H) | 11×7×2.5cm |
