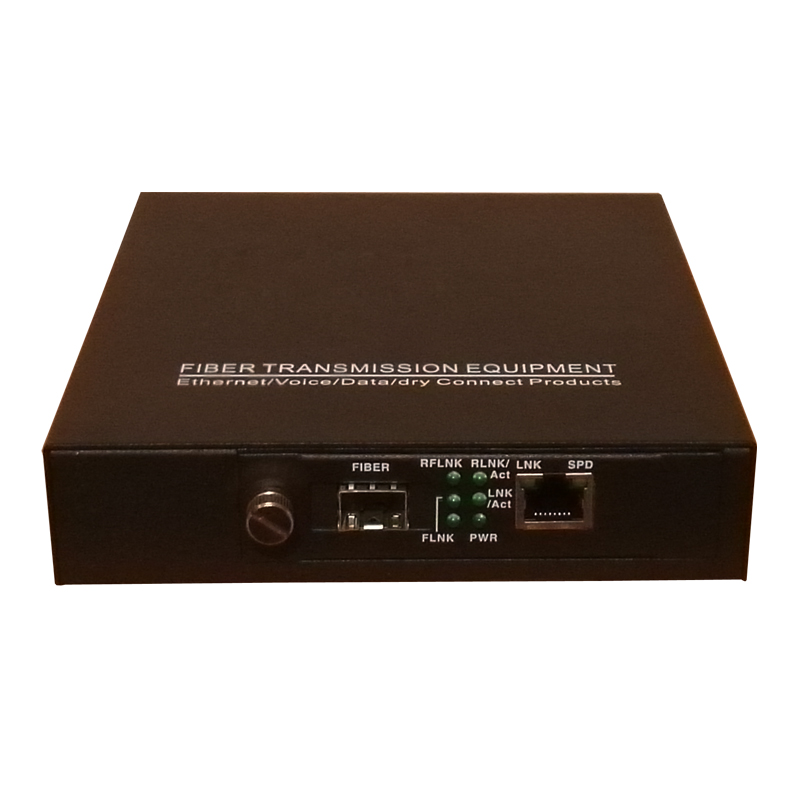

SNMP 10/100/1000M Fiber Medic Converter

Description

Overview

This series of products are IEEE802.3 Ethernet media converter, can realize 10/100Base-T twisted pair and 10/100Base-FX two medium conversion or extend the network transmission distance, is mainly used for optical fiber network transmission distance (20/40/60/80/120 km), fully support the 10/100M transmission rate.



Features

Ø automatically adapt to 10Mbps and 100Mbps environment, easy to upgrade the network;
Ø monitor with anti-crash auto-reset function for high-definition network cameras and other heavy duty applications;
Ø support full and half duplex network communication, with auto-negotiation capability;

Ø VLAN support the transmission of long packets can support IEEE802.10 protocol products matching switches used

to support up to 1600-byte Ethernet packets;

Ø Support FX half / full duplex and link failure alarm switch selection;
Ø Support UTP crossover Direct Connect adaptive, easy system commissioning and installation;
Ø low power consumption. Low heat, stable operation for a long time;
Ø External AC220 / 5V power adapter, can also be an external DC-48V / 5V power adapter;



u   Ethernet UTP Interface

Interface rate:              10/100 M, half/full duplex auto-negotiation

Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:                  RJ45, support Auto-MDIX

u  Optical Ethernet interface

Wave Length:          1310nm, 1550nm

Interface rate:              100 M, half/full duplex

Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability: 4096

Connector:                  FC/SC

Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

Transmission distance may also be limited by fiber optic bandwidth.

u   Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

u   Dimension

Product size:   140 X110 X30 mm(WXDXH)

Simple packaging: 295X225X84mm( WXDXH)

Piece weight:  0.75KG

u  Working environment

Working temperature: -10°C ~ 50°C
Working Humidity:        5%~95 % (no condensation)

Storage temperature:   -40°C ~ 80°C
Storage Humidity:         5%~95 % (no condensation)

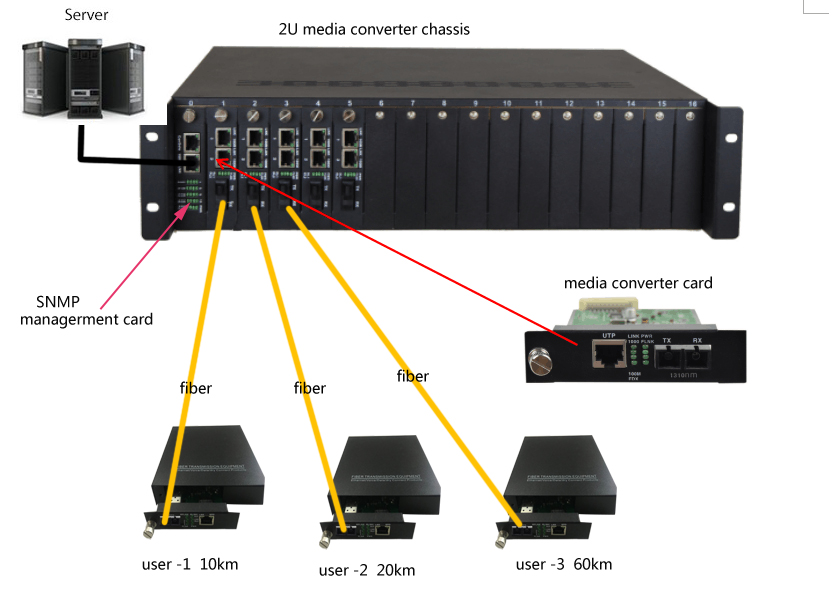

Application：
