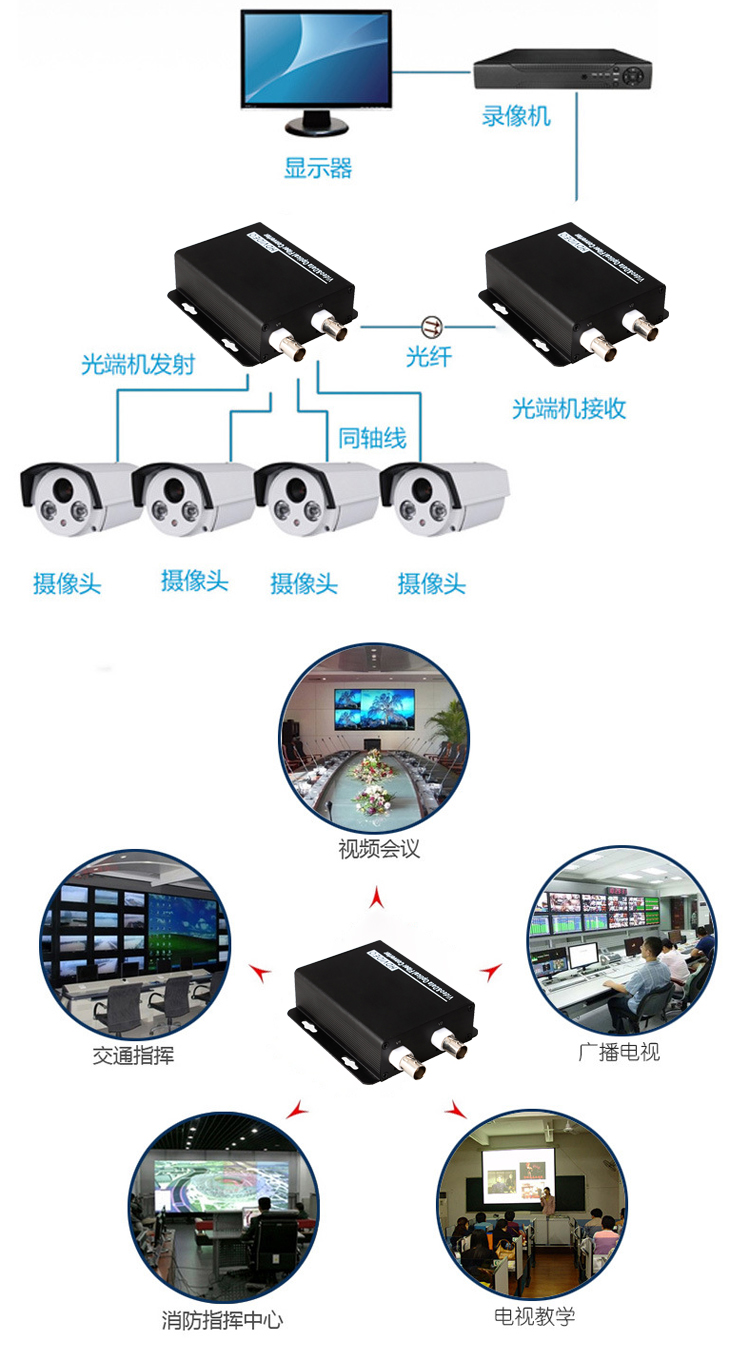

Application
◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City, Wireless City
◆ Highway monitoring system, Electronic road monitoring, Capture system
◆ Large industrial enterprise security monitoring systems, network multifunction system
◆ Remote multimedia teaching / Campus monitoring, Video conferencing systems
◆ Long-distance radio and television, high-quality video and audio transmission system
◆ Building intercom, Military communications, Military surveillance
Order Information
Model |
Specification (Fiber Interface: FC) |
Transmission Distance |
BGCVI-H1VZ-20 |
1-CH CVI Video Converter,Single fiber, FC, DC5V2A |
20KM |
BGCVI-H2VZ-20 |
2-CH CVI Video Converter,Single fiber, FC, DC5V2A |
20KM |
BGCVI-H4VZ-20 |
4-CH CVI Video Converter,Single fiber, FC, DC5V2A |
20KM |
BGCVI-H8VZ-20 |
8-CH CVI Video Converter,Single fiber, FC, DC5V2A |
20KM |
BGCVI-H16VZ-20 | 16-CH CVI Video Converter,Single fiber, FC, AC220V |
20KM |
Technical Specification | |

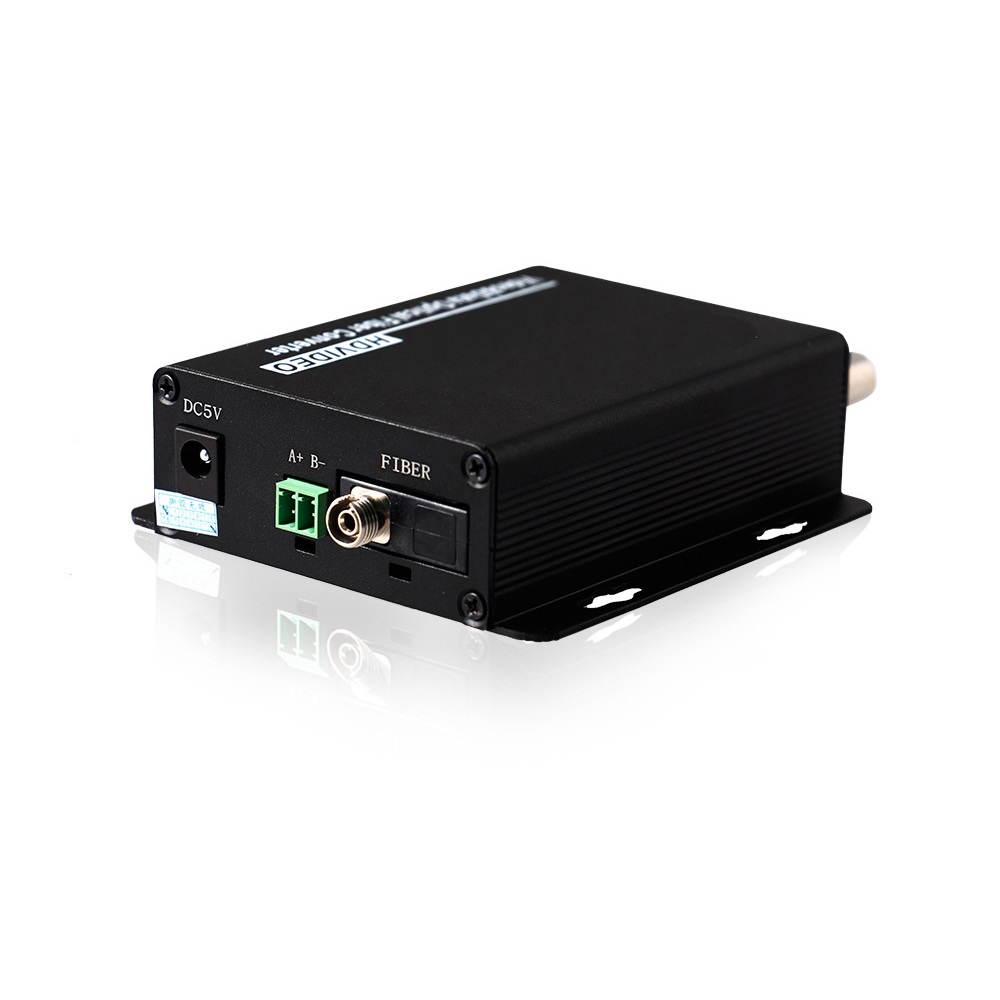

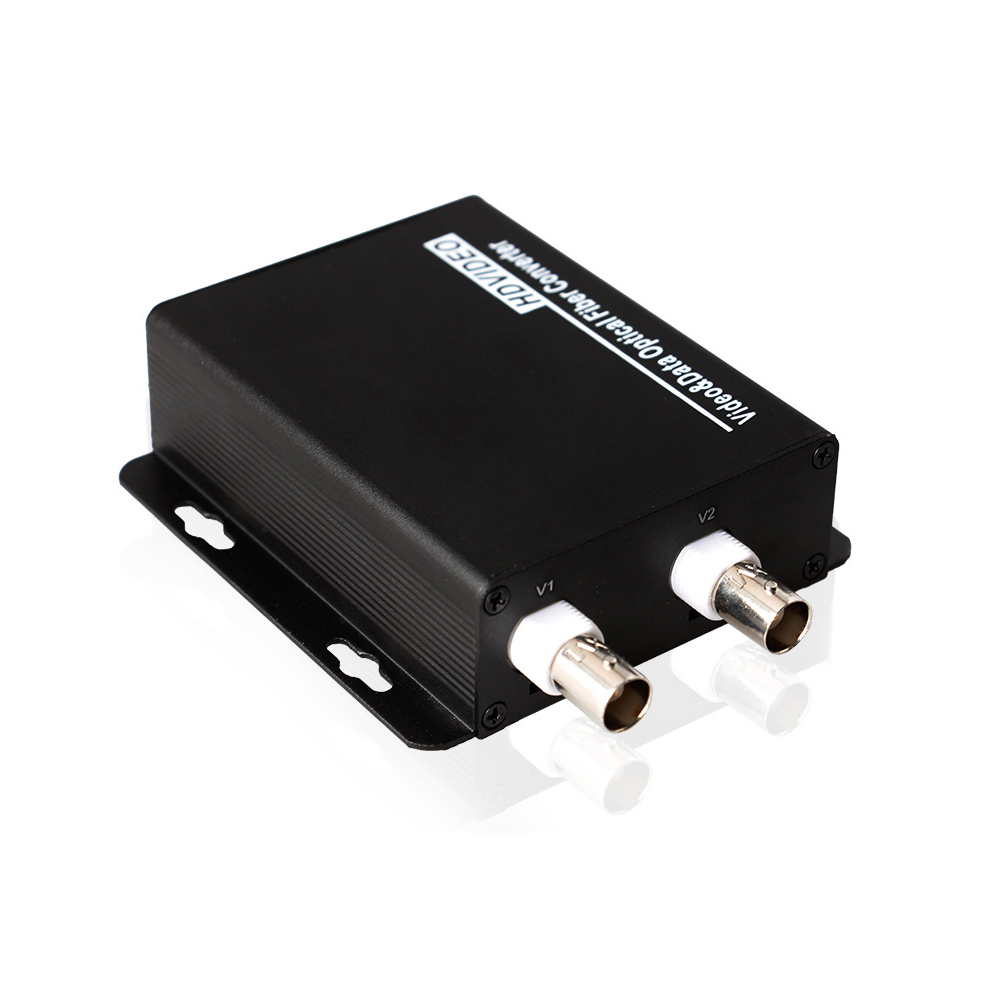

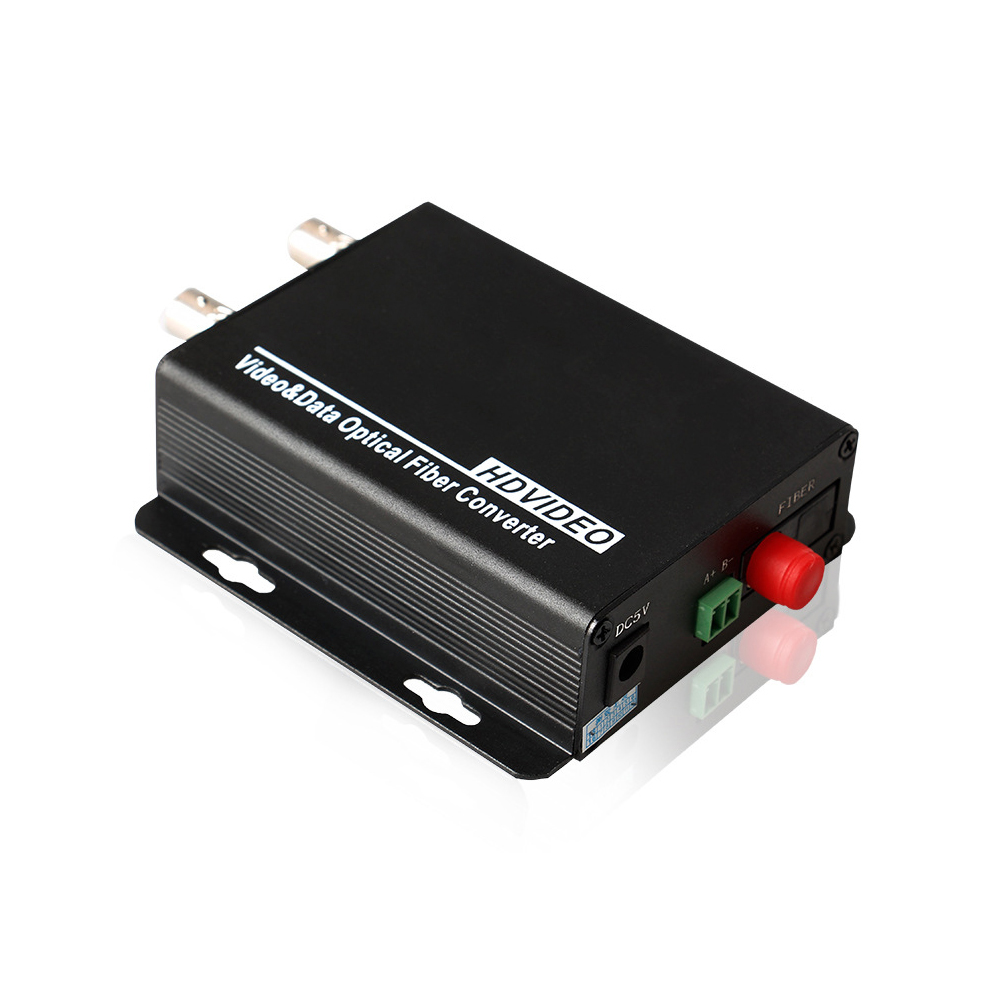

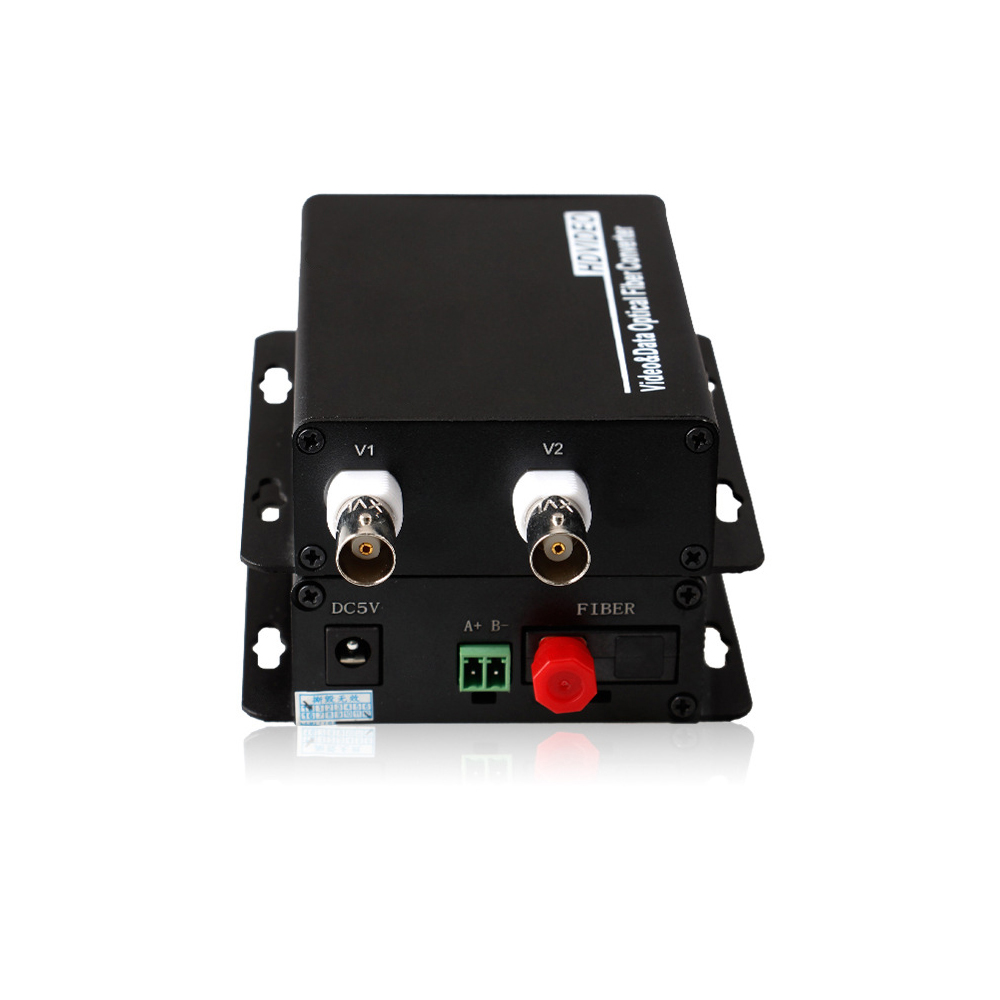

Product Name | 2 Channel CVI/AHD video converter |
Model | BGCVI-H2VZ-20 |
Description | HDCVI/AHD coaxial |
Ports | One FC fiber port+ 16 BNC port |
Transmission Distance | 20KM(Single mode) |
Fiber Interface | FC 1310nm/1550nm |
Video Interface | BNC |
Physical Interface |
FC fiber interface Single Mode/Multimode |
Transmission distance | 0~500M(multimode) / 0~20/40KM(single mode) |
Input / output wavelength |
The transmitter side: 1310nm transmit 1550nm receive; The receiving side: 1550nm transmit 1310nm receive |
Laser power | -8~ -3dBm / -3~+2dBm |
Receiver sensitivity | -25dBm |
Fiber Type |
Multimode: 50/125um62.5/125um Single mode: 9/125um |
Video |
720p|25/30 fps 1080p|25/30 fps |
Input Level | >500mVp-p |
Output Level | 1Vp-p |
Automatic cable | 1080p: 75-5 Coax Support 300m 720p: 75-5 Coax Support 500m |
Input and output impedance | 75Ω |
Physical Interface | BNC |
Video Input | 2 channels |
Video Output | 2 channels |
Output loop-through | 2 channels |
Video Bandwidth | 45MHz |
Sampling bandwidth | 10bit |
Baud Rate | 1200-9600bps |
BER | <10-9 |
Operating mode | Half-duplex |
Working Environment |
Operating Temperature: -40°~ 85°C Storage Temperature: -45°~ 95°C Operating Humidity: 5%~95% non-condensing |
Warranty | 3 year warranty |
