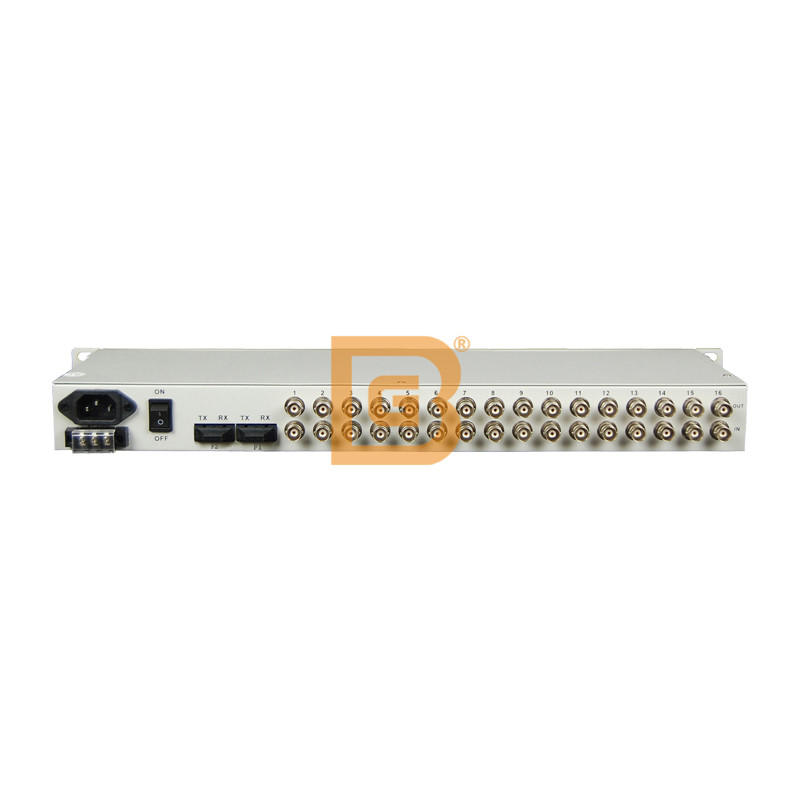

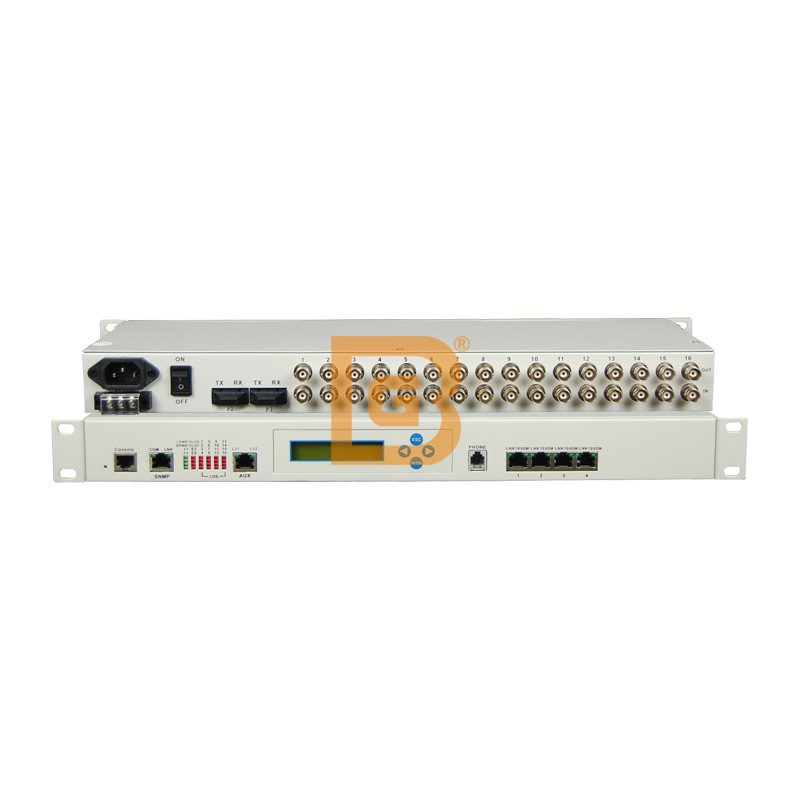

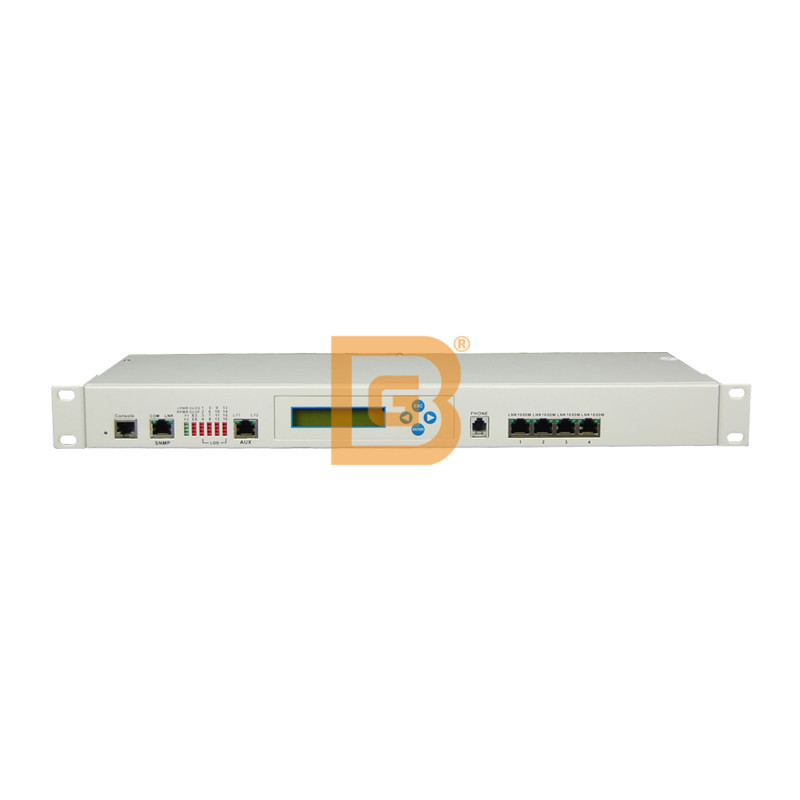

16E1+4GE+SNMP PDH Multiplexer

LCD PDH, 4GE,With 4 multifunction slots, with ALS function,Console or SNMP,1+1 Back up Optic fiber

skype whatsapp

描述

Overview

 This device has the console control ,provides the 1+1fiber path protection ,point to point optical transmission, LCD display , on the basic of our company development of the PDH optical transmission, use the special VLSI and the SNMP NMS.

      The device provides 1-16Channel E1 interface, 1-4Channel 10M/100/1000M Ethernet interface (Line Rate 1000M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 2 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size

Features

Ø Provides 16 E1 transparent transmission;

Ø With char 16*2 LCD display and SNMP agent inside

Ø Provide Console manage interface (RS232)

Ø Provide two fiber interface 1+1 protect(APS)function ,and ALS(Automatic Laser Shutdown/Reduction)function

Ø Provide 4X1000M line Ethernet channel support mutual negatiate, Ethernet bandwidth is set on base on multiple of 32K

Ø Provide one hotline channel for option,

Ø Provide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission

Ø The rate of optical port is 1.25Gbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;

Ø E1 interface code is HDB3,E1 vibration characteristic conforms to ITU-T G.703、G.823 and G.742;

Ø Ethernet port supports full/half duplex, 10M/100/1000M auto-ataptable;

Ø Ethernet port supports VLAN function and has 4devision mode for user selection;

Ø Ethernet package size support 1916 byte and 4 GE Ethernet port could be set seperately;

Ø Has complete alarm function and can monitor remote device status;

Ø Supports E1 loop from remote so as to detect and manage device conveniently;

Ø The combination AC220V and DC-48V for redundant

u  Fiber

         Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;

    Interface Rate:             n*64Kbps±50ppm;

    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

Gigabit Ethernet Interface (10/100/1000M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096
    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   19 inch 1U   485 X138 X45 mm(WXDXH)

   Simple packaging: 522X198X82mm( WXDXH)

   Piece weight:  3KG

u  Working environment

    Working temperature: -10°C ~ 50°C

    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C

    Storage Humidity:         5%~95 % (no condensation)

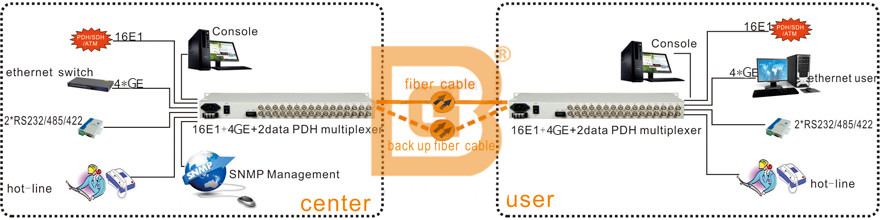

Application:
